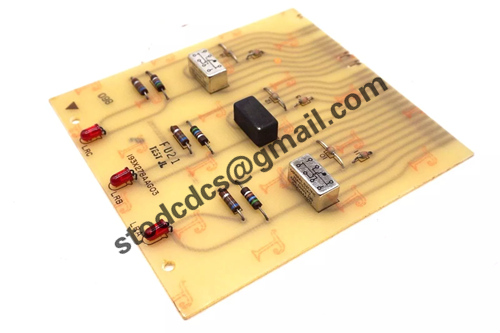

193X704ABG03 isolation module

Product manual:

GE 193X704ABG03 Isolation Module Technical Description
Product model: 193X704ABG03
Product Name: Isolation Module/Relay Output Card
Manufacturer: General Electric (GE)
Series: 193X series industrial control board
Product type: Relay Isolation Output Module
Main function: To electrically isolate the output of the control system and protect the safe operation of downstream equipment.

1、 Product Features
GE 193X704ABG03 is an isolated output module with relay drive function, usually installed in the control system framework, used for:

Electrical isolation and amplification of control signal output;

Control external loads such as contactors, actuators, and signal lights;

Implement high/low voltage isolation between the system and external devices;

Compatible with control systems such as GE DC drive or Speedtronic.

2、 Technical parameters
Description of parameter items
Signal input digital control signal (from logic board, such as TTL or 24V DC)
Output mode: Multi channel dry contact relay output, normally open (NO) or normally closed (NC)
Isolation method: Electromagnetic relays provide input/output isolation to prevent electrical interference transmission
The number of channels is generally 4 or 8 (depending on the specific design)
Power requirement ± 15V DC/+24V DC (powered by the system motherboard)
Installation method: Plug in card (insert into GE 193X rack or control box backplane)
Interface type: Rear gold finger connection, front with handle (easy to plug in and out)
Card size GE standard card size (compliant with the unified format of 193X series cards)

3、 Application Fields
Power plant automation systems, such as turbine control systems and excitation control systems;

Industrial drive system: used to control the starting and switching of motors, pumps, and fans;

Old drive systems such as GE DC2000 and EX2000;

Automated interlocking control: as a relay isolation protection for remote output signals;

Signal isolation occasions: Protect low-voltage logic systems such as PLCs and controllers from high-voltage feedback effects.
