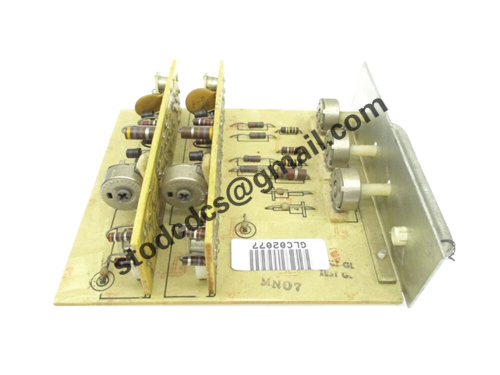

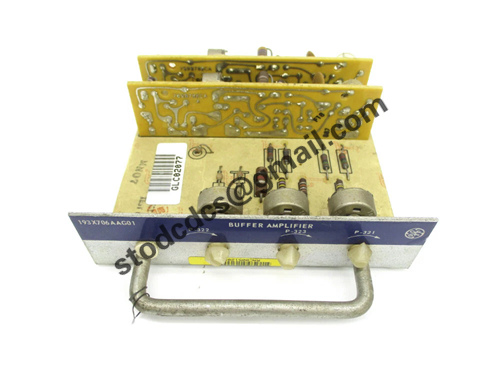

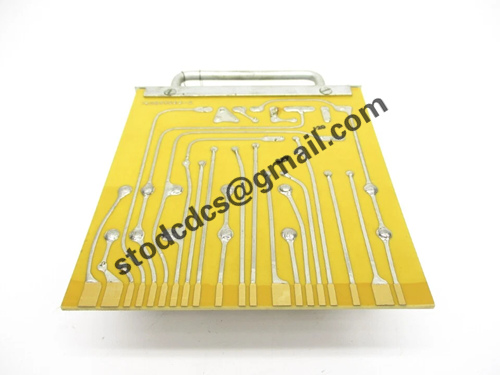

193X706AAG01 Buffer Amplifier Card

Brand:GE
Model:193X706AAG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X706AAG01 Buffer Amplifier Card

Product manual:

GE 193X706AAG01 Buffer Amplifier Card Technical Data
Product model: 193X706AAG01
Product Name: Buffer Amplifier Card
Manufacturer: General Electric (GE)
Series: 193X series control board
Function classification: Signal Buffering and Amplification Module
Application areas: Industrial control, data acquisition and processing systems

1、 Main technical parameters
Parameter item description
The input signal type is analog signal (such as voltage, current signal), commonly ranging from 0-10V, 4-20mA, etc
Output signal type: amplified analog signal, usually 0-10V or other standard voltage/current output
The amplification gain is fixed or adjustable, usually 1x, 10x, 100x, etc., depending on the design of the card
Signal isolation has electrical isolation between input and output to prevent signal interference or high voltage from affecting the system
Power supply voltage ± 15V DC or 24V DC (according to system power supply standards)
The working temperature range is usually -40 ° C to+85 ° C, suitable for industrial environments
Connection method plug-in card, compatible with GE 193X series control rack
Card size standard GE plug-in card module size, in accordance with the 193X series format
The input/output interface type is usually a terminal block or pin interface, used to connect external devices or sensors

2、 Application scenarios
Industrial automation control: As a relay and amplification module for signals in control systems, it ensures the accuracy and stability of system signals;

PLC and DCS systems: provide buffering and amplification of input signals to ensure that downstream modules can receive appropriate signals;

Process control system: used for gain adjustment during signal transmission to ensure that the signal adapts to the input requirements of different devices;

Instrumentation system: Enhance measurement signals and provide high-precision data acquisition;

Drive and motor control: Used in conjunction with sensors, frequency converters, and other equipment to achieve precise amplification and transmission of signals.
