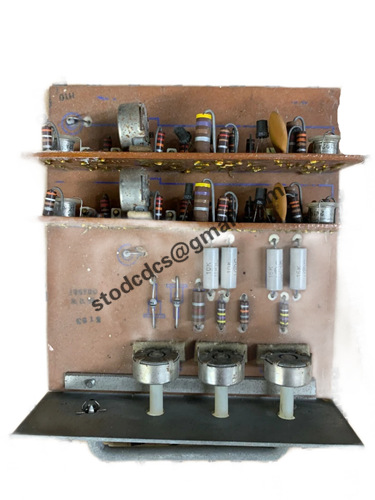

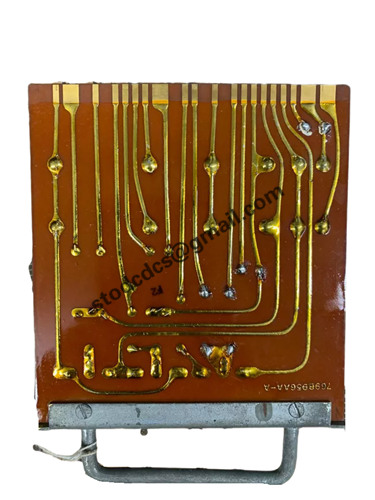

193X706AAG02 amplifier card

Brand:GE
Model:193X706AAG02
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X706AAG02 amplifier card

Product manual:

GE 193X706AAG02 amplifier card technical data
Product model: 193X706AAG02
Product Name: Amplifier Card
Manufacturer: General Electric (GE)
Series: 193X series industrial control board
Function classification: Signal Amplification and Gain Adjustment Module
Application areas: Industrial automation systems, data acquisition, process control, etc

1、 Product Features
The GE 193X706AAG02 amplifier card is a module used to increase input signal amplitude and provide signal gain.

Main functions:
Input signal amplification: Amplify low amplitude analog signals to meet the input requirements of downstream devices.

Gain adjustment: Provides different gain options to adapt to various input signal conditions.

Signal stability: Improve signal stability, reduce noise interference, and ensure precise control.

Electrical isolation: To prevent interference from high voltage or electrical noise, provide electrical isolation between input and output.

2、 Main technical parameters
Parameter item description
The input signal type is analog signal, such as voltage, current signal, commonly 0-10V, 4-20mA, etc
The output signal type is an amplified analog signal, usually ranging from 0-10V or other standard voltage outputs
Amplification gain adjustable gain, usually providing multiple gain setting options such as 1x, 10x, 100x, etc
Input/output isolation provides electrical isolation between input and output, preventing the transmission of electrical noise and interference
Power requirement ± 15V DC or 24V DC, according to the system power standard
Signal bandwidth is suitable for broadband signal amplification in industrial applications, ensuring accurate signal transmission
The working temperature range is usually -40 ° C to+85 ° C, suitable for various industrial environments
Installation method plug-in card, compatible with GE 193X series control rack or control system framework
The interface type generally adopts terminal connection or metal pin interface, which is used to connect external sensors and devices
Card size standard GE plug-in module size, in accordance with the standard format of 193X series cards
