193X707AAG01 motor on-site control card

Product manual:

Technical Data of GE 193X707AAG01 Motor Field Control Card
Product model: 193X707AAG01
Product Name: Motor Field Control Card
Manufacturer: General Electric (GE)
Series: 193X series industrial control board
Function classification: Motor Control and Field Regulation module
Application areas: Industrial automation, motor control, process control systems, etc

1、 Product Features
The GE 193X707AAG01 motor field control card is mainly used in motor drive systems,
By directly controlling the on-site operation of the motor, adjust the motor's speed, power output, start stop status, etc.
This card is suitable for systems that require real-time control of motors or electric motors,
It can provide efficient motor control and regulation functions to ensure the stability and accuracy of motor operation.

Main functions:

Load monitoring: Monitor the load status of the motor, including current, voltage, temperature, etc., and adjust the control strategy according to demand.

Overload protection: When the motor is overloaded or in an abnormal state, it automatically stops or alarms to prevent equipment damage.

Speed regulation function: supports precise adjustment of motor speed to adapt to different working conditions and load requirements.

2、 Main technical parameters
Parameter item description
Control methods include analog signal regulation (such as current and voltage) and digital signal input control (such as switch input)
Motor types are suitable for various types of motors such as AC motors, DC motors, synchronous motors, etc
Input signal type control signal (switch signal, analog voltage signal, etc.)
Output signal type motor control signal, such as regulating voltage, current or frequency signal
Power requirement ± 15V DC or 24V DC (depending on actual system power requirements)
Load current monitoring supports current sensor input to monitor motor operating status and load conditions
Environmental temperature range -40 ° C to+85 ° C, suitable for industrial environments

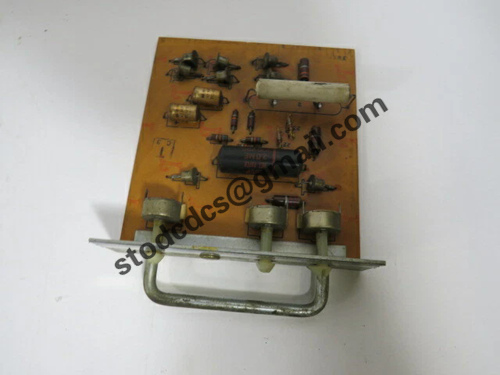

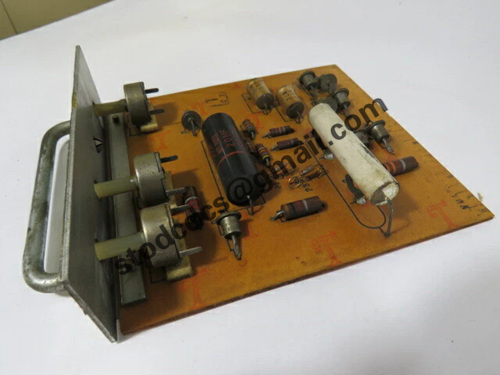

Product details picture:
