193X711AEG03 power amplifier card

Brand:GE
Model:193X711AEG03
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

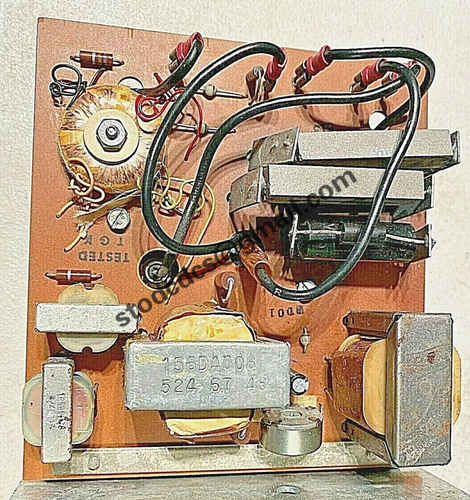

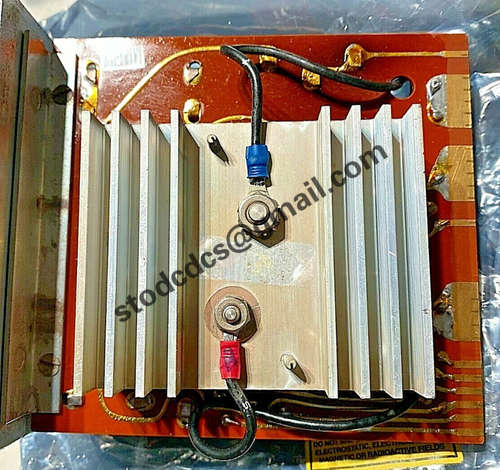

193X711AEG03 power amplifier card

Product manual:

GE 193X711AEG03 Power Amplifier Card - Technical Data Overview
1、 Product Overview
193X711AEG03 is one of the 193X series industrial control modules produced by General Electric in the United States, specifically designed for power amplification control in motor drive systems.

2、 Main functions

Signal amplification: Amplify the low-level signal output by the control board or regulating board with voltage or current to meet the required power level of the driving module.

Drive interface: Provide trigger signals to the main power module (such as thyristor rectifier or inverter).

Protection function: It has basic functions such as current limiting, over temperature protection, and output limiting.

Signal isolation: There is photoelectric or magnetic isolation between the input and output circuits to improve the system's anti-interference ability.

Closed loop feedback support: It can be combined with external speed, current, and voltage sensors to form a closed-loop control system.

3、 Technical parameters (typical values, for reference only)

Power supply voltage:+5V, ± 15V DC (from the system motherboard)

Input signal type: analog voltage signal (such as 0-10V), digital trigger signal, etc

Output current capability: Control level current for driving high-power devices (tens to hundreds of mA)

Signal gain: fixed or adjustable (depending on module settings)

Interface type: Edge connector, plug-in installation

Cooling method: relying on system air cooling, some models are equipped with radiators

Working temperature: -10 ° C to+60 ° C

Size specification: 193X series standard card size

4、 Application Fields

Industrial motor control system (DC speed regulation or variable frequency drive)
