193X712AEG03 Power Control Amplifier Card

Brand:GE
Model:193X713AAG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

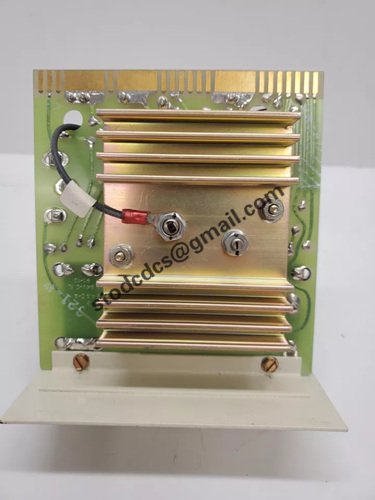

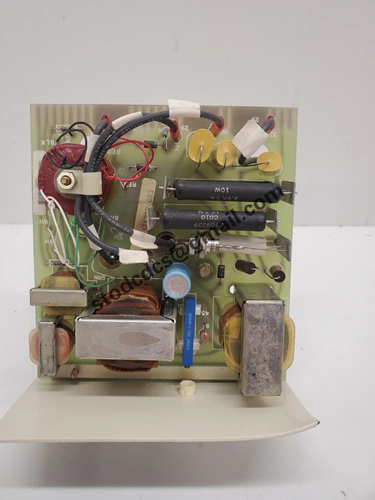

193X712AEG03 Power Control Amplifier Card

Product manual:

GE 193X712AEG03 Power Control Amplifier Card - Technical Data
1、 Product Overview
193X712AEG03 is a power control amplifier module in GE's 193X series, widely used in GE's Speedtronic, LCI drive systems or other large industrial automation platforms for precise control and drive signal amplification of motors or power devices.

2、 Functional Features

Power drive signal output: Receive low-level signals from the control module, amplify them, and output them to drive main power devices such as SCR, GTO, IGBT, etc.

Isolation amplification function: using isolation technology to prevent interference from the main circuit to the control circuit and improve the system's immunity.

Cooperate with feedback control system: can access feedback signals such as current, speed, voltage, etc., and support closed-loop regulation function.

Overload protection design: Built in protection mechanism to prevent module damage caused by signal short circuit or overload.

Plug in card design: compatible with GE control cabinets for quick installation and replacement.

3、 Technical parameters (typical)

Working voltage: ± 15V DC (provided by the system)

Input signal: analog signal (such as ± 10V) or PWM control signal

Output driving capability: Typical output current can reach 100-300mA

Installation method: GE 193X standard plug-in card structure

Cooling method: System air cooling or convection cooling

Working temperature range: -10 ° C to+60 ° C

Dimensions: Standard 193X card size (approximately 25 × 15 cm)

4、 Application scope

GE LCI (Load Commutated Inverter) Drive System
