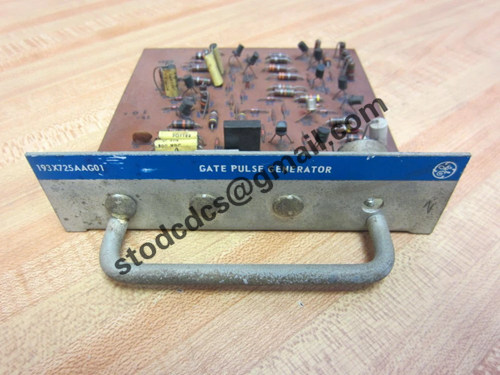

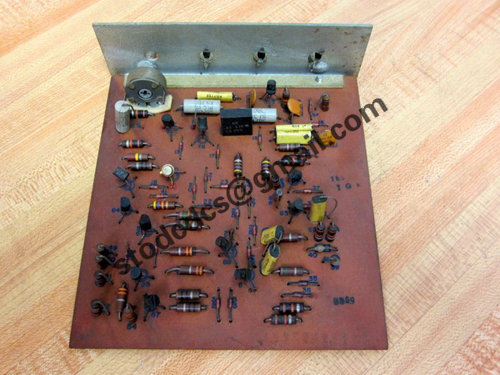

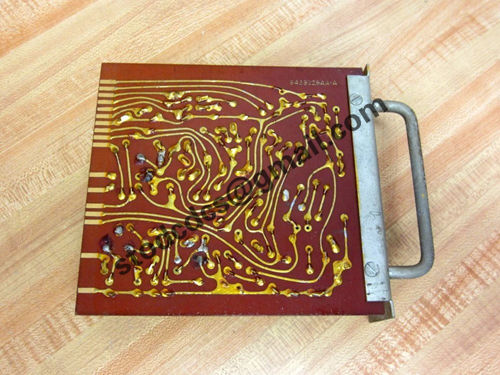

193X725AAG01 generator card

Brand:GE
Model:193X725AAG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X725AAG01 generator card

Product manual:

Brief introduction
The GE 193X725AAG01 generator card is an important module in the GE 193X series, specifically designed for generator control systems.

2、 Core functions

Generator parameter collection: Real time collection of working parameters of the generator, such as output voltage, current, frequency, speed, etc.

Status monitoring: Monitor the status of the generator, including load, current fluctuations, temperature, etc., to ensure the safe operation of the generator.

Signal processing and conversion: Convert the collected analog signals into digital signals, or convert digital signals into operable control signals.

Protection function: It has short-circuit protection, overload protection, overvoltage protection and other functions to prevent damage to the generator in case of abnormalities.

3、 Technical parameters (typical values)

Input voltage range: AC 220V or DC 24V (configured according to application requirements)

Input signal type: analog signal (voltage, current, frequency, etc.), digital signal (switch input)

Output signal type: standardized analog signal (such as 0-10V, 4-20mA), digital signal output

Operating frequency: 50Hz/60Hz (automatic adaptation)

Accuracy: Analog signal accuracy ± 0.1%, digital signal error ≤ 0.5%

Overload protection: supports short circuit protection, overcurrent protection, and overvoltage protection

Working temperature range: -10 ° C to+60 ° C

Size: Compliant with the 193X series standard plug-in card structure (approximately 25 × 15 cm)

4、 Application Fields

Power plant: used for monitoring and controlling generators to ensure the safe and stable operation of the generator system.

Wind power generation: Monitor and protect the generators of wind turbines to ensure power generation efficiency and equipment safety.
