193X725ABG01 pulse generator
Brand:GE
Model:193X725ABG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
193X725ABG01 pulse generator
Product manual:
GE 193X725ABG01 Pulse Generator - Technical Manual Overview
Brief introduction
The GE 193X725ABG01 pulse generator is an important module in the GE 193X series, designed specifically for industrial automation, control systems, and signal processing applications.
2、 Core functions
Accurate pulse generation: capable of generating high-precision pulse signals, supporting multiple pulse frequency and width settings to ensure stable signal output.
Pulse output control: Adjust the frequency, amplitude, or pulse width of the pulse output based on input conditions or external signals.
High frequency pulse output: suitable for high-speed control and detection applications, with pulse frequencies up to several hundred kHz.
External triggering function: supports external triggering signal input, used to control the timing of pulse occurrence.
3、 Technical parameters (typical values)
Input voltage: AC 220V or DC 24V (can be configured according to system requirements)
Output signal type: pulse signal (adjustable frequency, adjustable width)
Output frequency: from a few Hz to several hundred kHz (specific range depends on model configuration)
Accuracy: Pulse frequency error ≤ 0.1%, pulse width error ≤ 0.5%
Overload protection: built-in short circuit, overcurrent, and overvoltage protection circuits
Working temperature range: -10 ° C to+60 ° C
Size: Compliant with the 193X series standard plug-in card structure (approximately 25 × 15 cm)
4、 Application Fields
Motor control: used for generating pulse signals in motor drive systems to ensure precise control of the motor.
Signal processing and regulation: providing precise timing control signals for various industrial automation systems.
Sensor application: Used for precision sensor data acquisition and signal transmission.
Measurement and testing equipment: Provide a stable signal source in testing and measurement systems for equipment calibration or data analysis.
Communication system: can be used for pulse signal generation in communication systems such as modulation and demodulation, timing control, etc.

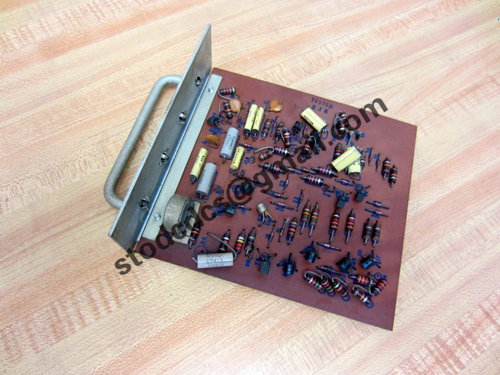

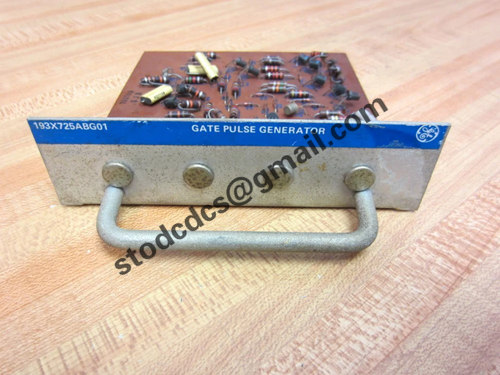

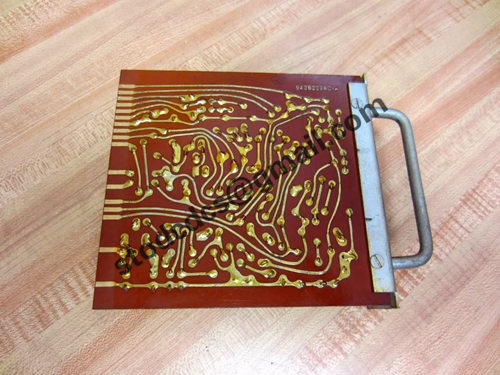

Product details picture:
