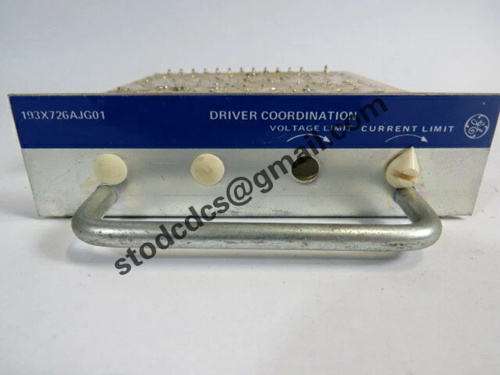

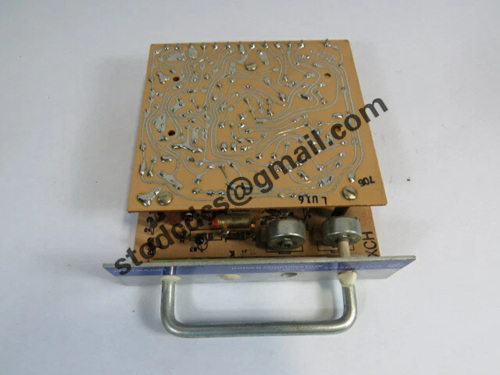

193X726AJG01 on-site control board

Brand:GE
Model:193X726AJG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X726AJG01 on-site control board

Product manual:

GE 193X726AJ01 is an industrial grade field control board launched by General Electric,
Mainly used for local control and feedback acquisition of complex motor drive systems, power generation equipment, and industrial processes.
As an important member of the GE 193X series control system, it is responsible for on-site input signal processing
Tasks such as actuator control, feedback feedback, and safety protection.

2、 Core functions
Signal acquisition and processing: Collect data from on-site devices (such as sensors, switches, analog signals) and perform preliminary signal processing.

Control output: Output control signals to actuators (such as relays, contactors, drivers) to achieve switch control or analog regulation.

System linkage: Linkage with the upper computer and main controller (such as PLC or DCS) to achieve centralized monitoring and distributed control.

Fault detection: It can detect faults such as overload, signal loss, and over limit, and provide feedback to the main control system through status signals.

3、 Technical parameters (typical values)
Parameter category description
Input voltage DC 24V/DC 5V (depending on configuration)
Input type: Digital quantity (dry contact)/Analog quantity (0-10V, 4-20mA)
Output type: Digital control output/Analog control signal output
The communication method is usually parallel bus or GE dedicated signal interface
Response time<1ms, suitable for fast response control scenarios
Module size standard GE 193X plug-in board format, approximately 6U high
Working temperature -20 ℃~+60 ℃
Storage temperature -40 ℃~+85 ℃
Humidity range 5% to 95% (no condensation)
Vibration resistance has passed industrial vibration testing standards and is suitable for mechanical vibration environments

4、 Typical application scenarios
On site equipment control in power plants (air valves, water pumps, slip ring systems, etc.)

Feedback and Control Circuit of Generator/Motor Drive System

Linkage control of large mechanical equipment (such as rolling mills, blowers)

State detection and local operation interface in energy management system

Industrial control cabinet/PLC submodule expansion board
