193X727ADG01 CNC board

Product manual:

Brief introduction
GE 193X727ADG01 is a digital control board (CNC board) in the General Electric (GE) 193X control system,
Mainly responsible for receiving system input signals and executing digital logic processing, used for executing control logic such as sequence control, numerical adjustment, and system triggering.
This module is widely used in power plant control systems, generator control equipment, and large-scale industrial automation systems.

2、 Core functional features
Digital control logic processing: capable of processing binary inputs and executing preset logic conditions, outputting corresponding control instructions.

Sequential logic function: used for starting/stopping sequential control and nested protection logic in complex process flows.

Fault response and diagnosis: It can receive status feedback signals from other modules and make judgmental logical responses.

Collaborative operation with simulation board: It can collaborate with analog processing board to achieve closed-loop control.

High reliability packaging: adopting industrial grade circuit design, suitable for stable operation in electromagnetic interference environments.

3、 Technical parameters (standard specifications)
Parameter Content Description
Power input ± 15V DC/+5V DC (uniformly powered by the control rack)
Signal input TTL logic level/dry contact signal
Output interface digital TTL/control trigger signal
193X series dedicated gold finger edge slot connection for board interface
Installation method slot installation to 193X control rack
Working temperature range -10 ° C~+60 ° C (industrial environment)
Response speed<1ms (digital logic response)
Board size standard 193X board length x height compatible rack

4、 Application Fields
Power plant generation control system - controls the start stop sequence, overspeed protection, and excitation regulation logic during the power generation process

Industrial Automation Production Line - Basic Logic Control Unit Before Implementing PLC

Control of Large scale Drive Equipment - Sequential Control and Feedback Processing Logic for Motor Unit Drive

Auxiliary control of relay protection system - paired with relay modules to perform edge logic functions

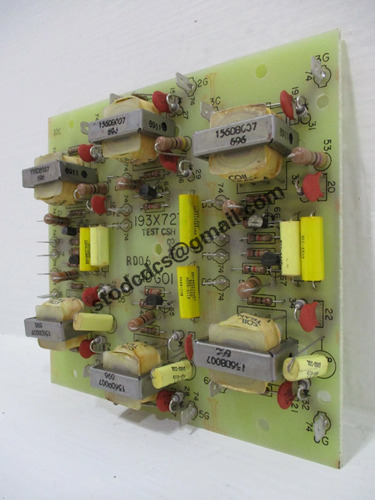

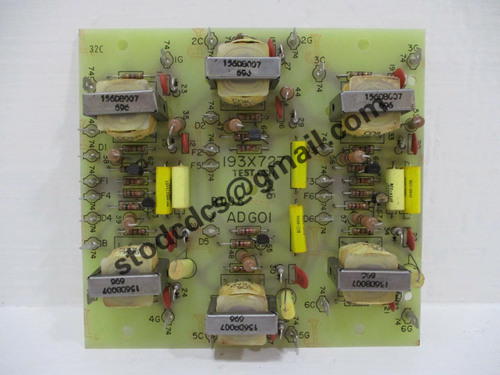

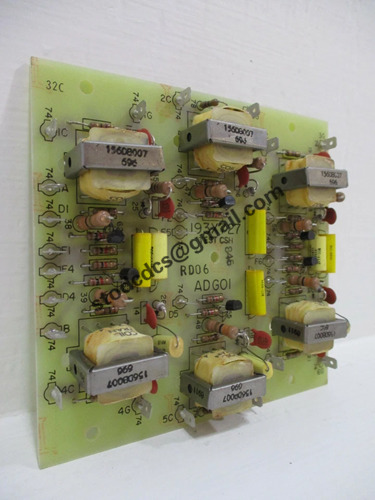

Product details picture:
