193X728AAG01 signal isolator

Product manual:

GE 193X728AAG01 is a dedicated signal isolator card in the 193X control system,
The main function is to provide electrical isolation between the analog or digital signal channels of the control system,
Prevent damage to backend equipment caused by grounding loops, electrical interference, and surge impact.
Widely used in high reliability applications, such as power plants, motor control cabinets, process control systems, etc.

2、 Core functions
Input/output electrical isolation: effectively blocking interference and short circuit risks between different voltage ground references

Transparent transmission of analog/digital signals: ensuring that the signal maintains waveform and amplitude consistency during isolation process

Strong resistance to common mode interference: particularly suitable for high noise, high electromagnetic interference (EMI) environments

Improve system security: isolate the front and rear circuits to avoid electrical shock conduction and damage to sensitive components

Signal matching and buffering function: adjust signal level and enhance driving capability while isolating

3、 Technical parameters
Parameter item description
Input type analog signal (4-20mA, 0-10V), or TTL digital signal
Output type is consistent with input (1:1 isolated transmission)
Isolation voltage ≥ 1500V AC RMS (input/output/power supply isolation)
Response time<1 ms (applicable to high-speed systems)
Accuracy error ≤± 0.1% FS
Power supply voltage ± 15V DC (from the system power supply backplane)
Working temperature -10 ° C~+60 ° C (industrial grade)
Installation method: Plug in type (193X rack specific slot)
Size specifications GE 193X standard board size

4、 Typical applications
Industrial Process Control Systems - Safe Transmission of Analog Signals such as Temperature, Pressure, Flow, etc

Power plant control system - providing safe isolation between control room and high-voltage equipment

Remote IO system - signals are transmitted from the remote end to the PLC/main control board and require electrical isolation

High potential equipment connection - avoid indirect ground potential difference interference with signal accuracy

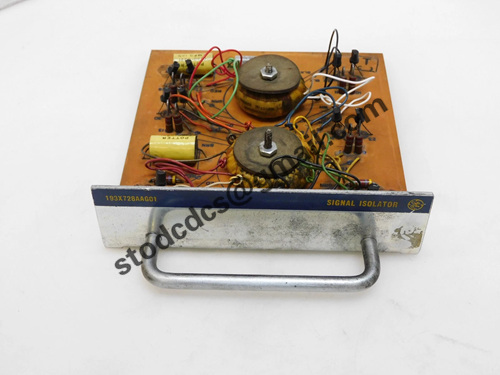

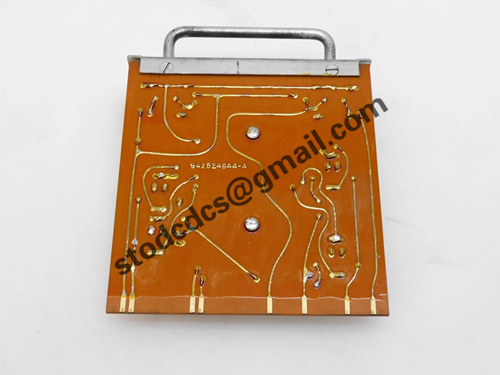

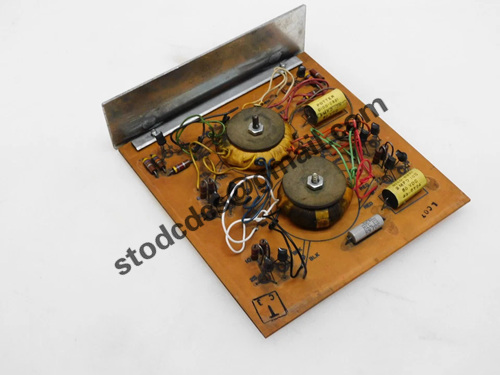

Product details picture:
