193X737ACG01 monitoring board

Brand:GE
Model:193X737ACG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

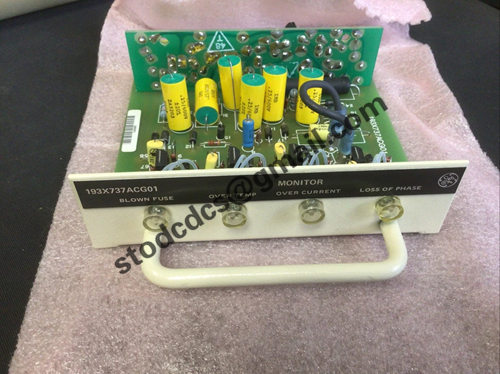

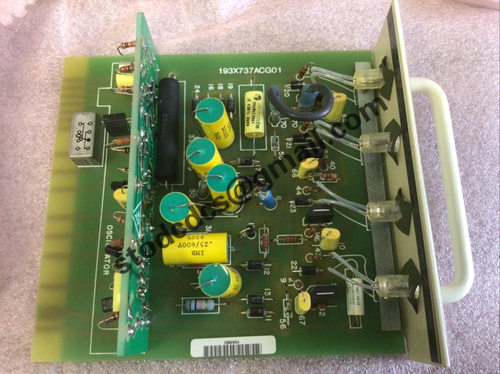

193X737ACG01 monitoring board

Product manual:

1、 Product Overview
193X737ACG01 is a monitoring board designed by GE for the 193X series industrial automation system. Its main function is to perform real-time detection and processing of multiple parameters

2、 Functional Features
✅ Multi channel analog signal acquisition: supports real-time acquisition of voltage, current and other signals

✅ Status monitoring: Continuous monitoring of the operating status of the controlled system

Alarm linkage output: When an abnormality occurs, the alarm relay can be triggered or a fault signal can be sent

✅ Stable data transmission: supports data exchange with other 193X modules or PLCs

✅ High electrical isolation performance: avoids on-site interference signal transmission to the control system

3、 Technical parameters
Project parameter description
Monitoring parameter types: current, voltage, frequency, power, temperature (depending on configuration)
Analog signal input 0-10V, 4-20mA, 0-5V, ± 15V, etc
Output signal analog value output/alarm relay dry contact/TTL signal
Accuracy ± 0.2% FS
Response time<10 ms
Isolation voltage ≥ 1500V AC RMS input/output/power supply isolation
Power supply mode ± 15V DC, taken from the power supply of the automation system rack
Working temperature -10 ° C to+60 ° C
Board installation plug-in card, suitable for GE 193X standard rack
Size specification standard GE 193X board size

4、 Typical application scenarios
Power plant system: used to monitor the operating status of generators, abnormal current, changes in bus voltage, etc

Motor control system: Real time monitoring of motor load to prevent overload or undervoltage operation

Automated production line: used for equipment status monitoring and early warning of equipment failures

Relay protection system: in conjunction with relay modules, used for rapid fault detection and linked tripping
