193X737ACG02 monitoring board

Brand:GE
Model:193X737ACG02
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

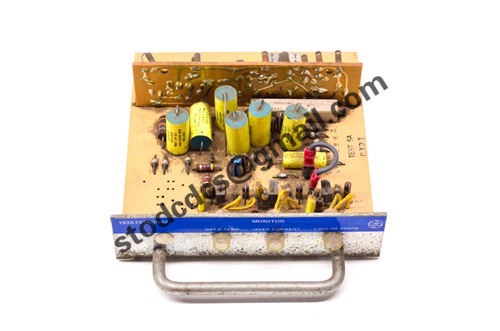

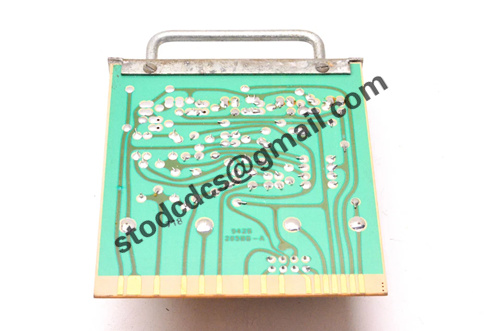

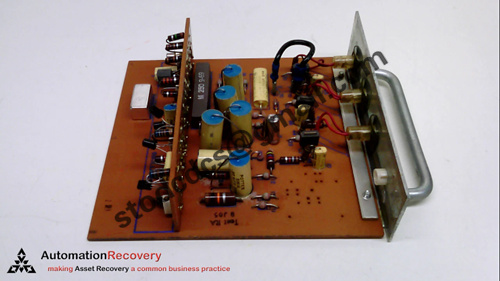

193X737ACG02 monitoring board

Product manual:

Brief introduction
193X737ACG02 is a high-performance monitoring board in the GE 193X series,
Widely used in large-scale power systems, drive equipment, and automation control devices.
Its design goal is to monitor key electrical parameters in real-time, such as voltage, current, frequency, etc,
To ensure stable operation of the system within the preset parameter range.

2、 Core functions
Multi channel electrical signal detection: supports monitoring of multiple analog or digital input signals

State recognition and alarm triggering: triggering alarm signals when parameters are abnormal

Signal isolation and protection: equipped with high-level input and output isolation to avoid system interference

Strong system linkage capability: can work together with other GE 193X control modules to perform actions such as tripping, starting, and switching

3、 Technical parameters
Project parameter description
Input type: analog voltage and current signals, some support digital signals
Input range 0-10V/± 15V/4-20mA (depending on configuration)
Output type: dry contact TTL、 Analog Output
Isolation voltage ≥ 1500V AC RMS (between input/output)
Response time less than 10 milliseconds
Accuracy level ± 0.2% typical
Power supply voltage ± 15V DC (usually powered by the main control system)
Working temperature range -10 ° C to+60 ° C
Installation method plug-in card, compatible with GE 193X series standard rack

4、 Typical application areas
Power plant system monitoring: such as identification of synchronous generator status and voltage anomalies

Large motor drive system: monitoring motor operating current, temperature rise, or power fluctuations

Automated equipment safety protection: monitoring key parameters to avoid equipment overload

Relay protection system: linked with protective relays to achieve rapid fault removal
