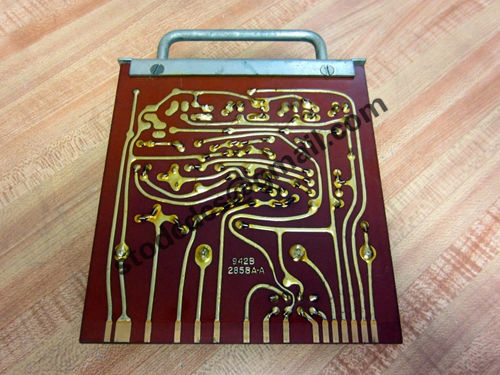

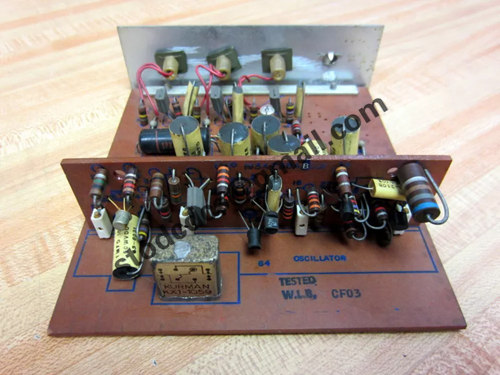

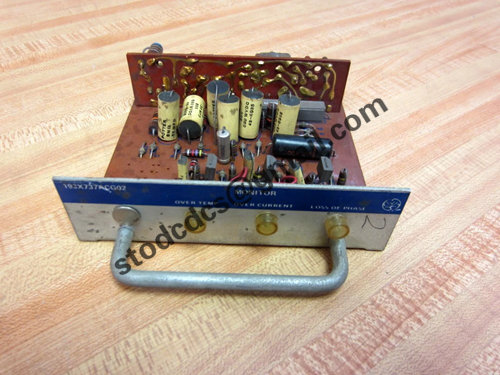

193X738ACG01 oscillator board

Brand:GE
Model:193X738ACG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X738ACG01 oscillator board

Product manual:

GE 193X738ACG01 oscillator board
Product type: oscillator module
Manufacturer: General Electric (GE)
Series: 193X Control System Module

major function
Provide accurate oscillation signals (usually clock or pulse signals)

Used as a frequency source for driving logic circuits or synchronous control

Supports multi band output with high stability

As the core timing reference in the control system, ensure the collaborative work of various modules

Technical parameters (typical)
Parameter values/descriptions
Output frequency range 10Hz-10kHz (adjustable)
Output type: square wave or sine wave (depending on the design)
Power input ± 15V DC
The output amplitude is usually 5V, 10V, or ± 15V
Stability ± 0.05% (compensated by temperature and voltage)
Interface plug-in board gold finger connection
Size standard GE card board size
Working environment temperature -20 ° C to+60 ° C

Application scenarios
Frequency reference in power plant control system

Logic Drive Signal Source in Industrial Motor Control

Timer triggering module in automation system

The oscillation core of high-precision synchronous system
