193X740ACG01 amplifier card

Product manual:

1、 Product Overview
GE 193X740ACG01 is a multi-purpose amplifier board designed specifically for GE's 193X industrial automation system.
It is mainly used for linear or power amplification of analog signals from controllers, sensors, or feedback loops to drive subsequent control loads or actuators.

2、 Core functions
Amplify low-level analog signals to drive loads

Capable of voltage or current amplification function

Support input signal adjustment and output feedback monitoring

Suitable for precise signal transmission and matching in control logic

3、 Technical parameters (typical)
Project Technical Specification Description
Input signal type: Analog voltage/current signal
Gain setting factory setting or user adjustable
Output current capability up to 1~2A (suitable for driving small and medium power loads)
Power supply voltage ± 15V DC or other system standard power supply
Signal response frequency up to tens of kHz, suitable for industrial control requirements
Plug in board connection GE standard gold finger connection to the main control rack
The size specification is approximately 25cm × 10cm (standard GE card size)
Cooling method: passive air cooling or system rack unified ventilation
Working temperature range -20 ° C~+60 ° C

4、 Typical applications
🟡 Motor control system: amplifies PWM or analog drive signals

🟢 Servo/Generator Feedback Channel Amplifier: Improving Control Accuracy

🔵 Automatic factory signal transmission link: isolation and amplification of sensor signals

🔴 Power control system: drives loads such as actuators or power relays

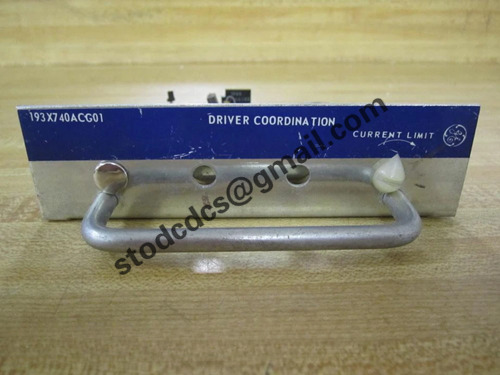

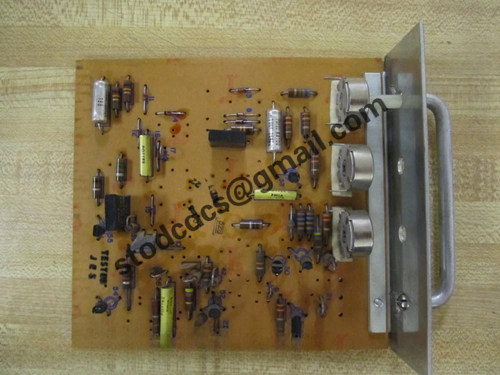

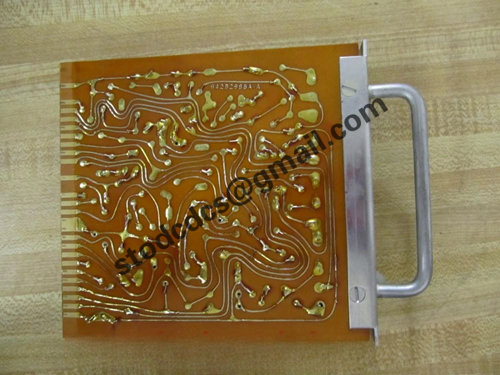

Product details picture:
