3500/22M 288055-01 Transient Data Interface Module

Product manual:

Module Overview

Model: 3500/22M 288055-01

Category: Transient Data Interface Module

Series: Bently Nevada 3500 Series

Purpose: Collect, transmit, and process transient signal data of mechanical equipment

Application environment: Power plant, petrochemical, heavy industry equipment monitoring

Features

Transient signal acquisition

Capture short-term abnormal vibration, impact, or mechanical failure signals during device operation

Can be used to monitor rotating machinery such as turbines, compressors, motors, etc

Data interface and transmission

Transfer transient data to the monitoring system or data processing unit

Support real-time or near real time data transmission for convenient remote analysis

Compatible with 3500 series

Module design for integration into 3500 series racks

Can work in conjunction with other vibration, temperature, or protection modules in the 3500 series

Protection and alarm functions

Support abnormal state alarms for critical mechanical equipment

Can be used to trigger safe shutdown or preventive maintenance

Application scenarios

Power Plant: Turbine Vibration Monitoring and Protection

Petrochemical and Refinery: Mechanical Condition Monitoring of Compressors, Pumps, and Centrifuges

Heavy industry equipment: real-time vibration monitoring of key rotating machinery

Remote diagnosis: analysis of historical transient data through data interface

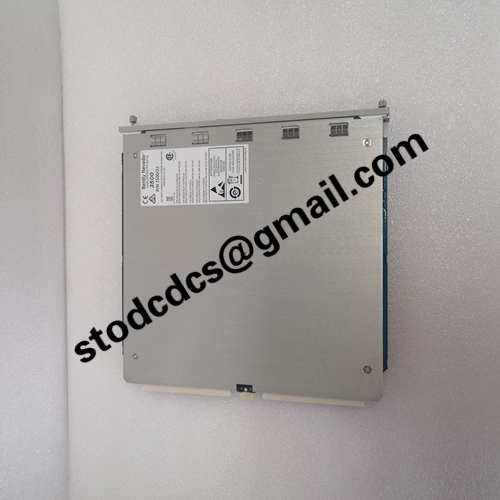

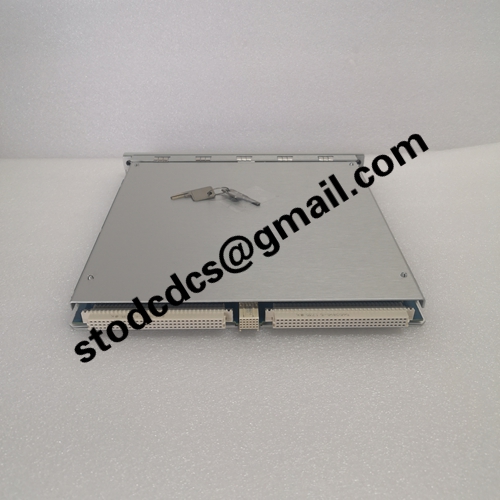

3500/22M 288055-01 Product details picture:

3500/22M 288055-01 product video
