3BSE008538R1 Bus Terminator

Model: 3BSE008538R1
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

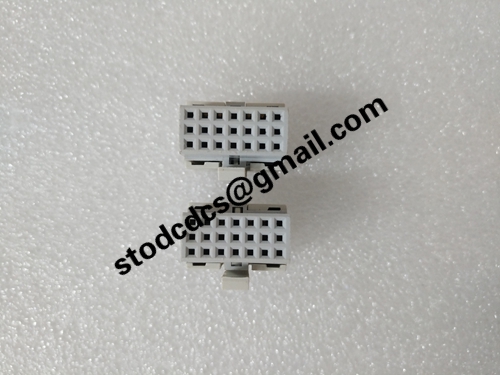

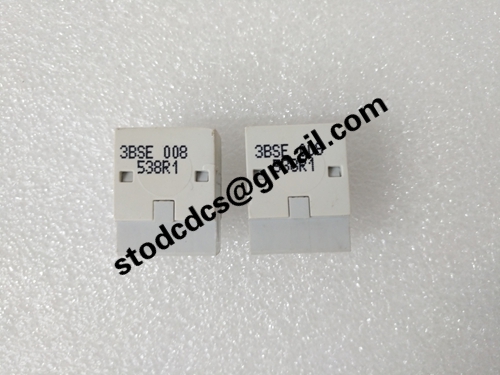

3BSE008538R1 Bus Terminator

Product manual:

3BSE008538R1 is a bus terminator used for fieldbus or backplane bus termination in industrial control systems. Its main function is to provide impedance matching at the physical end of the bus to suppress signal reflection, reduce noise interference, and improve communication stability, thereby ensuring the reliability of digital communication.

Typical application areas

Distributed Control System (DCS)
Used for terminal termination of fieldbus (such as Profibus, Modbus, Fieldbus, etc.) or internal backplane bus in control cabinets.

PLC and modular control system
Terminal matching is performed at the farthest node of the PLC system or backplane communication network to improve data transmission quality.

Automated production line communication network
Terminate at the end of the serial network structure to avoid signal reflection affecting communication stability.

Process Control and Machine Communication System
Used for end terminal matching in industrial field networks (such as sensor/actuator buses).

Measurement and Control System and Real time Monitoring Network
Ensure the stability of high-speed data acquisition and distributed communication systems.

Main functions and features

Impedance matching terminal function
By matching the bus terminals with specific resistance values, signal reflection and interference are effectively suppressed.

Improve communication stability
In long line or high-speed bus systems, proper termination can reduce data errors or disconnections.

Easy installation
The structural design is suitable for plug-in installation on module backboards or at the end of fieldbus terminals.

Suitable for industrial environments
Good anti vibration and anti electromagnetic interference performance, suitable for use in control cabinets or on-site environments.

Standardized design
Adapt to system bus specifications for easy maintenance and system expansion.
