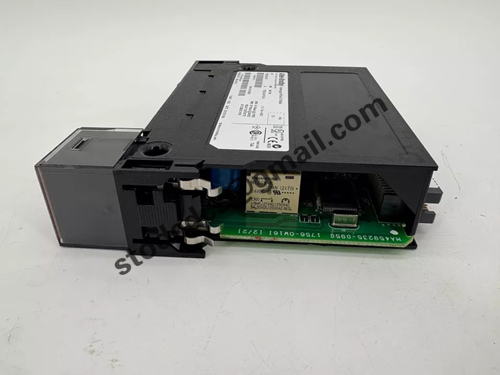

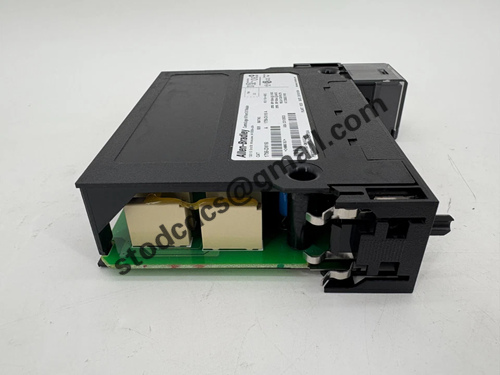

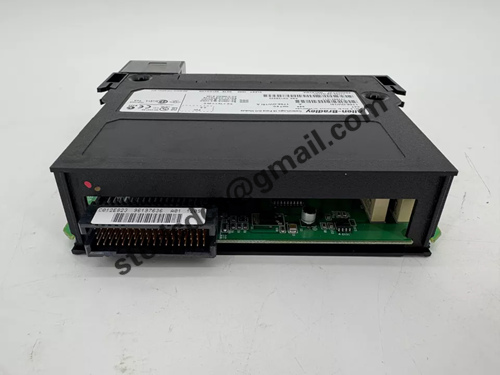

A-B 1756-OW16I Digital Relay Module

Brand:A-B
Model:1756-OW16I
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

A-B 1756-OW16I Digital Relay Module

Product manual:

1756-OW16I is a digital relay output module in the Allen Bradley ControlLogix series,
Designed for industrial automation control systems, providing reliable digital relay outputs suitable for controlling AC or DC loads.

2、 Main functions
Output type: 16 point relay output, suitable for switch control of various loads, such as motor starters, indicator lights, valves, etc.

Relay specifications: Each relay can withstand up to 2A current and support both AC and DC loads.

Isolation design: The relay output is electrically isolated from the control system to improve system safety and anti-interference capability.

Diagnostic function: Supports module status and point status diagnosis for easy maintenance and fault detection.

Compatibility: Fully integrated into the ControlLogix system, can be configured and monitored through the Logix 5000 controller.

3、 Technical parameters
Output points: 16 relay outputs

Load current: maximum 2A per point (please refer to the detailed technical manual for details)

Output type: Mechanical relay (Form C, single pole double throw)

Voltage range: Can control AC and DC voltage loads (generally 24V to 250V AC, 12V to 30V DC)

Isolation: Electrical isolation between relay contacts and internal circuits of the module

Electrical lifespan: The typical mechanical lifespan is approximately 10 ^ 7 operations

Installation Method: ControlLogix Standard Rack Insertion

4、 Application Fields
industrial automation control
