A6500-UM control card module

Model: A6500-UM
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

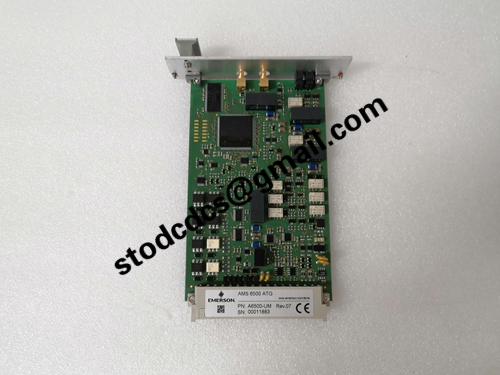

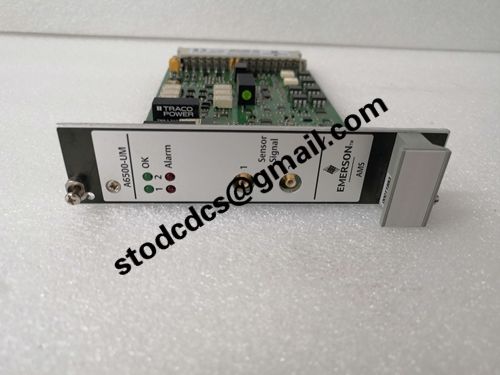

A6500-UM control card module

Product manual:

The A6500-UM control card module is a motion control/servo control card in Mitsubishi servo systems, used to coordinate motion control instructions, process axis motion logic, and drive servo drivers to achieve precise position/speed control.

basic positioning
Model: A6500 UM
Type: Motion/Servo Control Card Module
Purpose: As a part of the motion controller, it achieves control and command coordination of the servo axis
System integration: commonly used in CNC, automation equipment, robots, and motion control stations
core functionality
Motion command execution: Receive motion commands from the upper level main controller (such as PLC, PC controller), control the servo drive to execute precise motion
Trajectory control and closed-loop feedback: Processing position, velocity, and acceleration/deceleration curves to achieve curved motion
Parameter setting and optimization: Supports servo parameter adjustment to optimize speed response, steady-state accuracy, and dynamic performance
Communication interface: Communicate with the upper control system through bus or serial interface
Multi axis coordination capability: It can achieve coordinated control of multiple axes in composite motion scenarios (depending on system configuration)
Typical Applications
Numerical Control Machine Tool: Precise Control of Spindle and Feed Axis
Automated production line: motion control requirements for handling, positioning, etc
Robot Platform: Multi axis Motion and Path Control Core
High precision equipment: etching machine, marking machine, automatic testing equipment, etc
Summary of Characteristics
Specially designed for motion control systems, tightly integrated with servo drives
Support real-time motion command processing and feedback
Rich adjustable parameters for easy debugging and performance optimization
Capable of achieving multi axis synchronization and complex motion control
