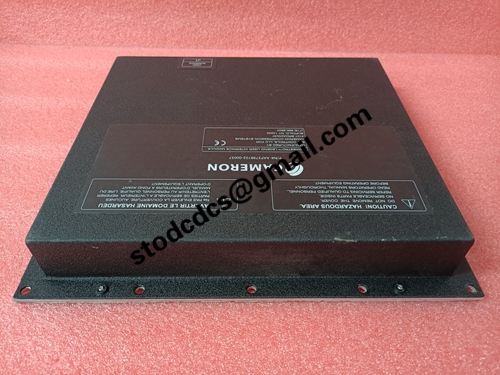

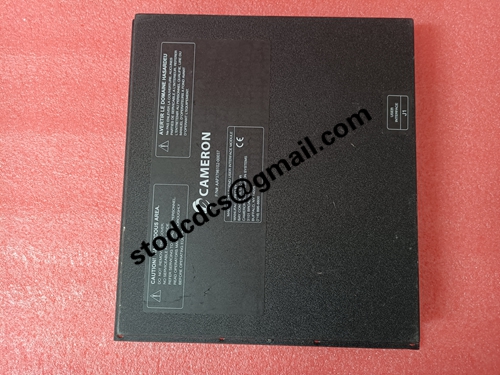

AAP3798102-00037 Operator Interface Panel

Model: AAP3798102-00037
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

AAP3798102-00037 Operator Interface Panel

Product manual:

AAP3798102-00037 Operator Interface Panel
Product positioning

Operator Interface Panel (OIP) for industrial automation systems

Used for monitoring and controlling industrial equipment, production lines, or automation systems

The manufacturer provides standardized industrial interfaces that can directly communicate with controllers or PLC systems

core functionality

Display device operating status, alarm information, and real-time data

Provide touch or button input, allowing operators to set parameters and input control commands

Supports graphical interfaces that can display flowcharts, dashboards, or custom interfaces

Built in security mechanism to prevent misoperation

Technical Features

Industrial grade design, high temperature resistance, vibration resistance, dust and water resistance (commonly IP65 or above)

The display screen type can be TFT LCD, LED or touch screen

Supports multiple communication protocols, such as Modbus, Profibus, Ethernet/IP, etc

Can exchange real-time data with the control system, realizing the combination of on-site operation and remote monitoring

working principle

The panel receives data from the controller or PLC and presents it to the operator through the display interface

The operator inputs commands or modifies parameters through the panel

The panel sends instructions to the controller or PLC through standard protocols to drive on-site devices

The system can perform closed-loop control based on panel input and feedback

Precautions for use

Confirm power requirements, commonly 24   V DC industrial power supply

Choose the appropriate level of protection based on the on-site environment

The connection between the panel and the controller should follow the communication method and interface specifications recommended by the manufacturer

Regularly check the panel display and input functions to ensure reliable operation

Summary of Advantages

Provide intuitive and visual operation interface to improve operator efficiency

Integrated security features to reduce the risk of misoperation

Industrial grade design ensures stable operation in harsh environments

Compatible with multiple control systems, achieving flexible system integration
