ACQUISITION AL81G Converter Board

Product manual:

The ACQUISITION AL81G converter board is an industrial grade electronic module used for analog signal conversion and transmission in data acquisition systems,
Mainly used in fields such as process control, automation systems, testing and measurement equipment.

1、 Product Overview
Product Name: AL81G

Type: Analog Signal Converter Board/Acquisition Converter Board

Function: Convert analog signals into electrical signals that can be processed by the control system for data acquisition and conversion

Typical use: To output analog signals (such as voltage, current) from on-site sensors, transmitters, etc
Convert into standard signals for use by upper level systems (such as PLC, DCS, industrial control computer)

2、 Main functional features
High precision conversion: Supports high-resolution analog signal input to ensure acquisition accuracy, suitable for environments that require high reliability measurements.

Multi channel input: typically has multiple analog input channels that can process multiple sensor signals simultaneously.

Electrical isolation: It has input/output isolation function to ensure system stability and anti-interference ability.

Multiple signal compatibility: Supports common analog signal forms such as 0-10V, 4-20mA, etc.

Fast response: low latency signal processing to meet the requirements of real-time control systems.

Strong configurability: Some versions can set input types and ranges through jumpers or software.

3、 Technical parameters (example)
Project Parameters (Example)
Input signal type: Analog voltage (0-10V)/current (4-20mA)
Number of input channels 4-8 channels
Resolution 12-16 bit A/D conversion
Signal response time<10 ms
Working voltage 24V DC
Isolation between electrical isolation channels and systems
Working temperature range -20 ° C to+60 ° C
Installation method: slot type/panel type/DIN rail installation

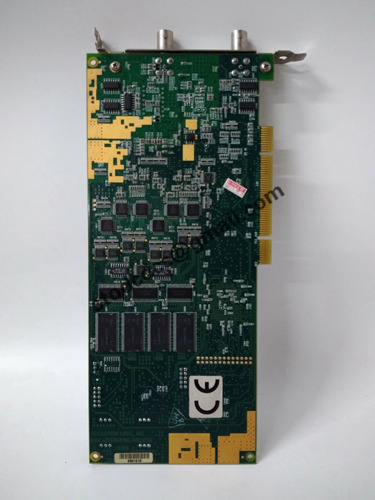

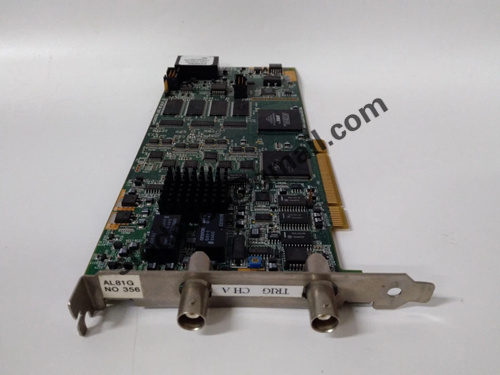

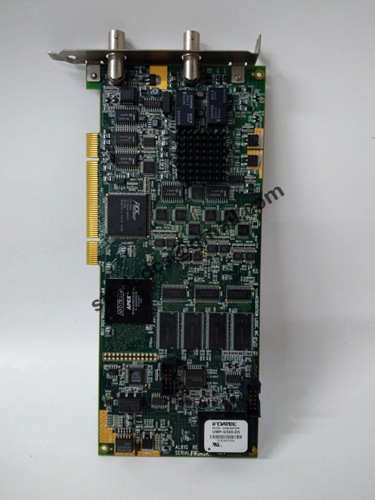

Product details picture:
