AEG MODICON 140CPS21100 power module

Product manual:

Product Name: AEG MODICON 140CRP93200 Adapter Module
Type: Remote I/O Head End Adapter Module
Series: Modicon Quantum Industrial Automation System

1、 Product Overview

140CRP93200 is a remote I/O adapter module in the Modicon Quantum system, used to connect the main controller to remote I/O devices. It supports distributed I/O network architecture, enables remote data acquisition and control, and is widely used in large-scale industrial automation systems.

2、 Main functions

As a remote I/O network head end module, it manages the transmission and reception of I/O data.

Support redundant coaxial cable connections to improve system communication reliability.

Each drop can handle up to 64 input and 64 output points, making it suitable for large-scale distributed I/O systems.

Supports up to 31 drops/networks for easy system expansion.

Provide communication isolation to enhance anti-interference capability and system security.

3、 Product Features

High speed data transmission ensures fast refresh of I/O signals.

Dual channel redundant connection design reduces the risk of single point failure.

Industrial grade reliability design, suitable for continuous operation environment.

Modular structure, easy to install in racks or control cabinets.

Compatible with multiple Modicon series systems, achieving flexible expansion.

4、 Typical applications

Distributed I/O system enables centralized control of remote sensors and actuators.

Large scale industrial automation systems, such as chemical, electrical, metallurgical, and production line control.

High reliability systems require redundant communication and fast response.

The application of dispersed and distant I/O points in distributed control systems.

5、 Environmental requirements for use

Used within the industrial standard temperature range, in a dry and non condensing environment.

Installed in the control cabinet or rack to ensure good heat dissipation.

Coaxial cable connections must meet standard requirements to ensure signal integrity.

The system bus and power supply must meet the power and current requirements of the module.

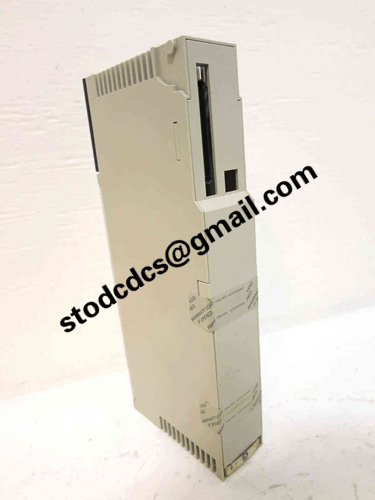

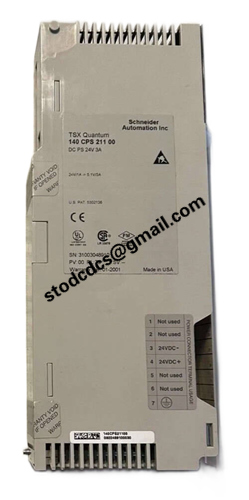

AEG MODICON 140CPS21100  Product details picture:

140CPS21100
