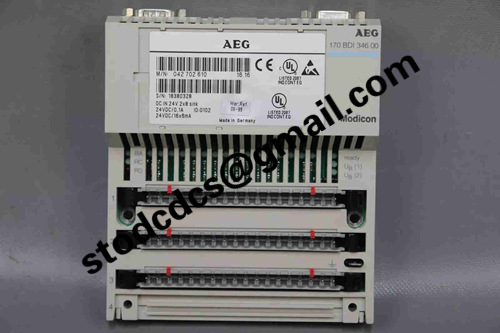

AEG Modicon 170 BDI 346 00 Input Module

Brand:AEG MODICON
Model:170 BDI 346 00
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

AEG MODICON 170 BDI 346 00 Input Module

Product manual:

AEG Modicon 170 BDI 346 00- Module Introduction

170 BDI 346 00 belongs to the Modicon 170 series of discrete input modules, used to receive various switch signals from field devices.

Module functional positioning

The main functions of this input module include:

Collecting switch status: detecting signals from sensors, buttons, limit switches, protective contacts, etc

Isolation treatment: Ensure that on-site electrical noise does not affect the control system

Signal steady-state judgment: Built in filtering logic to avoid jitter and false triggering

Collaboration with Modicon Control System: Used as a remote or local I/O station

Suitable for control scenarios that require a large number of discrete signal inputs.

Channel capability and technical characteristics
1. Multi point input design

The module provides multiple independent digital inputs, each with separate status detection and indication, capable of monitoring the operation status of multiple independent devices simultaneously.

2. Support common industrial voltage levels

Typical support for 24V DC signals (with slight differences in parameters between different versions), and can directly interface with various sensors and contact devices.

3. Good anti-interference performance

The input circuit has isolation and noise suppression mechanisms, suitable for environments with dense interference sources such as motors and contactors.

4. Real time response capability

The scanning cycle is short and the response is fast, which can meet the high requirements for action timing in industrial sites.

Module Structure and Design Highlights

LED status indicator: Each channel is generally equipped with indicator lights for easy debugging and on-site inspection

Clear terminal layout: easy to connect and maintain quickly

Modular installation: compatible with 170 series base or control architecture, can be directly plugged in for use
