AEG MODICON DAP216N output module

Product manual:

AEG MODICON DAP216N output module

DAP216N is a commonly used output module in the Modicon series, used to convert the logical results of PLC into electrical control signals that can be directly executed by field devices.

Main functions

Output control signal
Generate on/off or action instructions based on the running results of CPU programs to drive various execution devices.

Load driving capability
Suitable for standard industrial loads, able to maintain stable output for a long time.

Action isolation protection
Built in isolation structure helps reduce the impact of interference from the load side on the system.

Status synchronization and feedback
The output status can be synchronized to the CPU through the backplane for easy monitoring and logical diagnosis.

Structure and Performance Characteristics

Having multi-channel output, it can meet the multi-point action requirements within one rack.

The output response speed is stable and can maintain a consistent system rhythm.

High compatibility with AEG/Modicon system, supporting 800 series and related legacy platforms.

Suitable for continuous operation scenarios, able to withstand frequent action switching.

The wiring terminal layout is clear, facilitating maintenance and on-site replacement.

Typical application scenarios

Drive conventional actuators such as solenoid valves, relay coils, contactors, etc

Control of starting, stopping, and segmented actions of mechanical equipment

Automated production lines for automobile manufacturing, food processing, chemical/energy, water treatment, etc

Maintenance, expansion, and replacement projects for the old Modicon system

Multi point synchronous control, sequential logic action execution

Advantages of use

Clear and reliable output actions reduce the risk of accidental triggering

Modular structure facilitates quick replacement and system expansion

Stable anti-interference ability, suitable for industrial environments

It is a common and necessary output unit in many AEG/Modicon systems still in operation

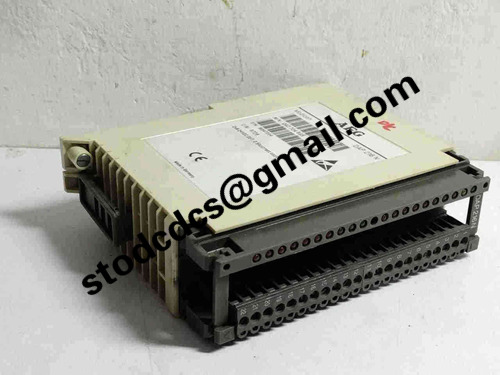

AEG MODICON DAP216N Product details picture:
