AEG MODICON RTC-8700 Programmable Logic Controller

Product manual:

AEG MODICON RTC-8700 Programmable Logic Controller

RTC-8700 is an early programmable logic controller in the AEG/Modicon system, but has been used in industrial settings for a long time. As the main control unit of the system,

core functionality

Program logic execution
Responsible for running user written control processes, including sequential control, logical judgment, timing and counting, and status management.

data acquisition and processing
Continuously exchange data with input modules, record device status in real-time, and perform logical operations.

Action output coordination
Synchronize the processed results to the output module to enable the execution mechanism to run rhythmically.

Communication and Expansion Management
Support collaborative work with expansion racks, remote I/O, and communication modules to build a complete control network.

Structure and Performance Characteristics

Adopting industrial grade design, emphasizing long-term stability and environmental adaptability.

The scanning cycle is stable and can handle multi-point data and complex logic.

The built-in storage area is used to store logical programs and key parameters.

Compatible with the traditional Modicon I/O module system, making it easy to expand points or replace old devices.

Capable of continuous operation in high interference and complex electromagnetic environments.

Typical application industries

Chemical production line

Power equipment control

Building materials, metallurgy, and steel processing

Water treatment and environmental protection system

Mechanical Manufacturing and Continuous Automation Section

Upgrade and maintenance project for old factory control system still in operation

Advantages of use

Stable operation, suitable for environments with long cycles and 24-hour continuous production

Modular structure, easy to maintain and replace

High compatibility with old systems, suitable for life extension projects in existing factories

Clear control logic, capable of supporting diverse automation scenarios

Low failure rate, easy for maintenance personnel to diagnose and handle

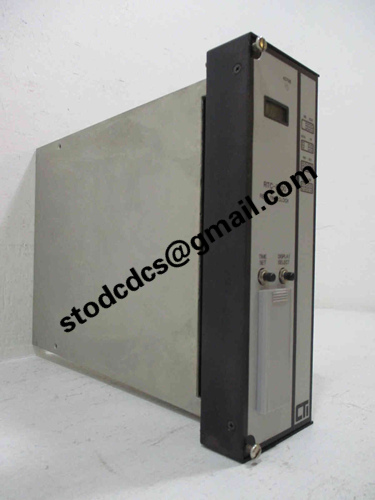

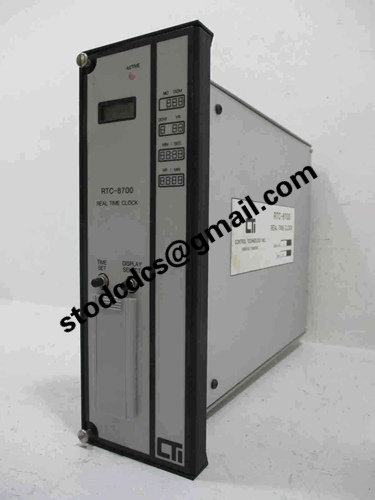

AEG MODICON RTC-8700 Product details picture:

RTC-8700
