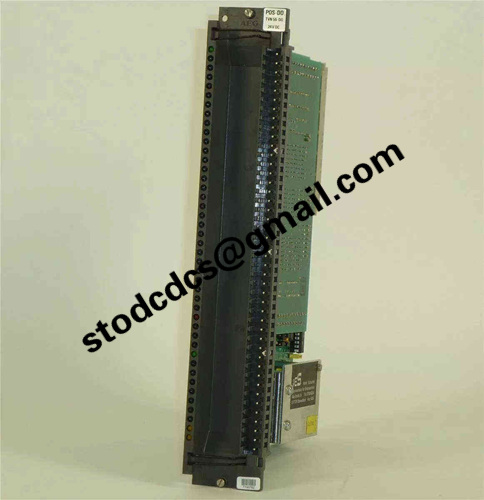

AEG Modicon TVN55-DO Driver Module

Brand:AEG MODICON
Model:TVN55-DO
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

AEG MODICON TVN55-DO Driver Module

Product manual:

Introduction to AEG Modicon TVN55-DO Driver Module
TVN55-DO is a drive control module in the AEG Modicon system, mainly used to drive and control actuators, moving parts, or devices with specific action requirements.

functional positioning

Provide controlled driving signals for actuators, which can be used for motors, linear mechanisms, or other small action devices.

According to the logic output instructions of the upper controller, execute precise action switching on the device.

Monitor the output process and have basic protection and signal feedback capabilities.

As a functional module in the system, it collaborates with other control units to achieve overall device action coordination.

Technical and output characteristics

The module has clear driving characteristics and is designed specifically for action loads. The output port is suitable for direct connection with electrical actuators.

Support stable switching control, adapt to continuous actions and frequent switching tasks.

Some driver ports have protection mechanisms, such as basic protection under overload, short circuit, or overcurrent conditions.

Has good electromagnetic compatibility and can maintain stable output in environments containing motors, contactors, and other equipment.

Structure and application characteristics

The module adopts a card type structure, which is easy to install in the corresponding Modicon control rack.

The status indicator light can display the operating status of the channel, facilitating on-site diagnosis.

Typical application scenarios

Small motor drive and action switching control.

In automation equipment, it is necessary to specify the components that perform actions, such as sorting mechanisms, robotic arm end units, etc.

Start control of action devices, such as baffles, propulsion mechanisms, and pneumatic to electric drive components.

Function expansion of AEG/Modicon system or replacement application of old control racks.
