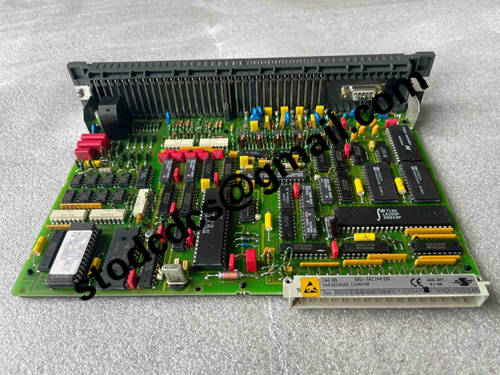

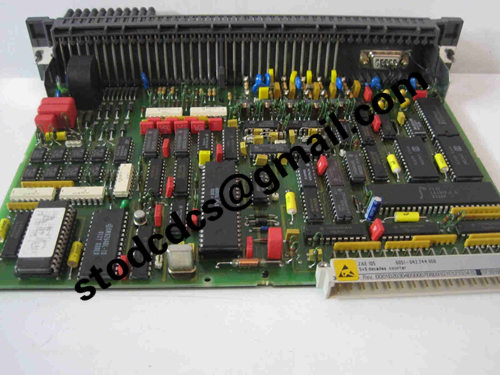

AEG MODICON ZAE105 Counter Module

Brand:AEG MODICON
Model:ZAE105
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

AEG MODICON ZAE105 Counter Module

Product manual:

AEG MODICON ZAE105 Counter Module - Product Features Overview

1. Designed specifically for high-speed counting applications
ZAE105 is mainly used for receiving pulses, encoder signals or high-speed trigger quantities, suitable for production cycle monitoring, length measurement, speed acquisition and positioning related control occasions.

2. High counting accuracy and fast response speed
The module has high-frequency pulse capture capability, which can accurately record pulse changes in a short period without omission or repetition, providing accurate real-time data for backend logic.

3. Supports multiple counting modes
It usually has multiple working modes such as one-way counting, up and down counting, preset value comparison, frequency measurement, etc., and can be flexibly configured according to process requirements.

4. Proper anti-interference processing
In order to adapt to the noisy on-site environment such as the motor area and servo area, the input end has been strengthened with filtering and isolation design to reduce erroneous counting caused by misreading and jitter signals.

5. Closely cooperate with the controller
It can directly read counting results, trigger comparison interrupts, or assist logic judgments in the Modicon control system, ensuring smooth data exchange and making program writing more intuitive.

6. Intuitive status indication
There are clear indicator lights for input pulses, counting activities, and comparison outputs, making debugging and troubleshooting easier, and on-site verification more efficient.

7. Modular structure for easy maintenance
Maintain the consistent plug-in structure of the Modicon series, with fast replacement and no impact on the operation of other modules in the system.
