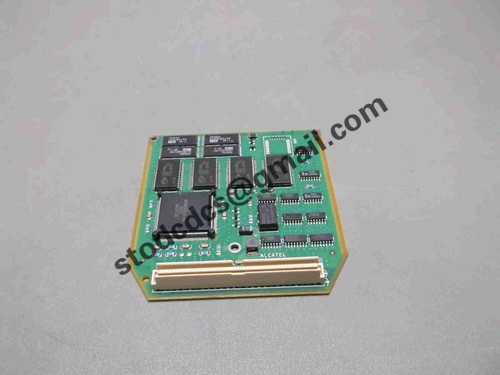

ALCATEL-LUCENT 3AL00320BC01 Optical and Electrical Board

Brand:Alcatel Lucent
Model:3AL00320BC01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

ALCATEL-LUCENT 3AL00320BC01 Optical and Electrical Board

Product manual:

ALCATEL-LUCENT 3AL00320BC01 is an Optical Electrical Board,
Usually used in optical communication systems, responsible for photoelectric signal conversion or optical transmission control.
The following is an analysis of its possible application areas and functional characteristics:

1. Main application areas
(1) Optical Transmission System (OTN/DWDM)
Wavelength division multiplexing equipment: may be used for Alcatel Lucent 1830 PSS series optical transmission platforms,
As a fiber optic card (such as an OTU board), it supports wavelength conversion or optical signal amplification.

Fiber optic backbone network: Processing high-speed optical signals in long-distance or metropolitan optical networks
(such as coherent optical transmission of 100G/200G/400G).

(2) Fiber optic access network (PON/FTTx)
OLT (Optical Line Terminal): In GPON/XGS-PON devices,
May be used for uplink optical interface modules to connect to the core network.

ONU/ONT management: supports optical to electrical signal conversion in fiber to the home (FTTH) scenarios.

(3) Data Center Interconnection (DCI)
Optical module plug-in board: providing high-speed optical interconnection in data center switches or routers
(such as QSFP28/CFP2 interface), supports low latency data transmission.

(4) Mobile Forward/Back Transmission (5G/C-RAN)
Wireless optical transmission: used for forward transmission (such as eCPRI) or return network of 4G/5G base stations,
Realize the conversion between optical signals and electrical signals.

2. Functional characteristics (speculated)
Optoelectronic conversion: Integrated laser (Tx) and photodetector (Rx), supporting single-mode or multi-mode optical fibers.

Speed support: May cover speeds of 1G/10G/25G/100G, compatible with OTN (G.709) or Ethernet standards.

Pluggable design: Some models may support hot swapping (such as SFP+/QSFP+form) for easy maintenance and upgrades.

3. Typical equipment compatibility
This module may be used for the following Alcatel Lucent/Nokia optical network devices:

1830 Photonic Service Switch (PSS)

1626 Light Manager (LM)

Miniaturized OTN devices (such as compact packet optical transmission platforms).
