ALCATEL LUCENT 3BA53188ABCC simulation board

Product manual:

ALCATEL-LUCENT 3BA53188ABCC is an analog subscriber line card specifically designed for telecommunications access network equipment. Its main function is to provide voice access services for traditional analog telephone users (POTS users). This card is typically used in Alcatel Lucent's ISDN/DSL/FTTx access platforms, such as ISAM or NGDLC series devices.

1、 Basic product information
Product model: 3BA53188ABCC

Product Type: Analog User Board/Analog Voice Access Module

Manufacturer: Alcatel-Lucent

Function classification: Plain Old Telephone Service (POTS) analog telephone access

Installation method: slot type, installed in a dedicated slot for multi service access devices

2、 Core functions
Functional category description
User voice access provides each end user with an analog telephone line interface (RJ11 or telecommunications terminal)
Voice signal conversion achieves bidirectional conversion (A/D, D/A) between analog voice signals and system digital voice signals
Ringing and power supply provide ringing voltage and loop voltage, used to drive the telephone to ring and maintain communication current
State monitoring and feedback to the main control module, including monitoring of disconnection and hanging, occupancy status of voice channels, line faults, etc
3、 Applicable platform
This type of board is mainly used in Alcatel Lucent multi service access platforms, including but not limited to the following systems:

Description of Access Platform
ISAM 7302/7330 series fiber or copper cable access integrated business platform, providing support for POTS+DSL/fiber services
NGDLC (Next Generation Digital Loop Carrier) is a traditional digital voice/data signal multiplexing system used for copper wire access
OMS/DSLAM series equipment provides local exchange access capability for voice and data fusion

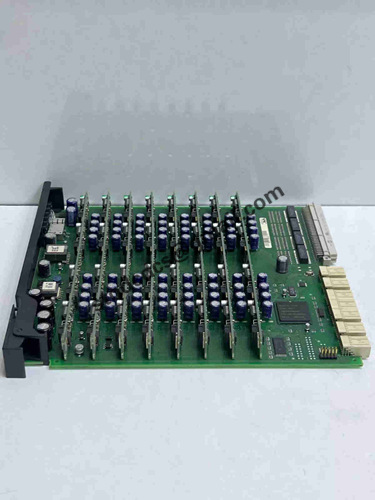

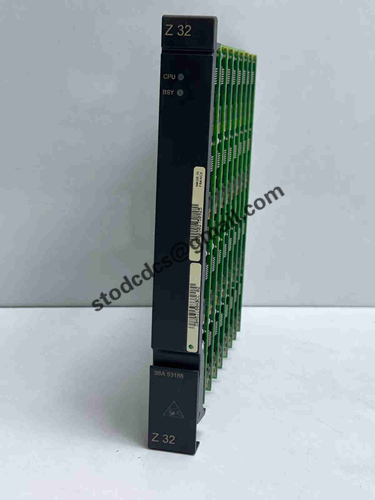

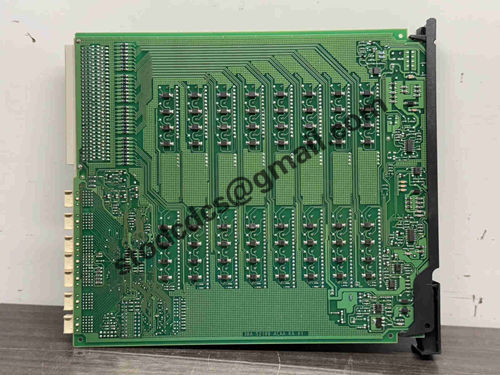

Product details picture:
