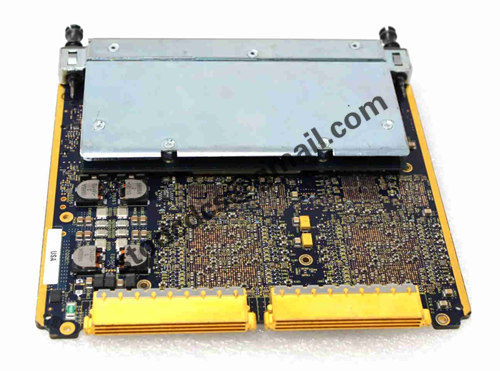

Alcatel Lucent 3HE00101AB Switch Port Module

Brand:Alcatel Lucent
Model:3HE00101AB
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Alcatel Lucent 3HE00101AB Switch Port Module

Product manual:

The Alcatel Lucent 3HE00101AB Switch Port Module is a high-performance interface expansion board in Alcatel Lucent (now part of Nokia) communication equipment,

1、 Basic Information
Project Description
Model 3HE00101AB
Device type: Switch port module/Ethernet interface board
Manufacturer Alcatel Lucent (now Nokia)
The adaptation platform may be used for 7x50 series (such as 7750 SR, 7705 SAR) switching routing devices
The main purpose is to provide multi port Gigabit or 10 Gigabit Ethernet connections for network access and aggregation
2、 Main functions
Port Expansion

Add multiple physical Ethernet ports to the main switching/routing equipment to connect user devices, upstream cores, or downstream access nodes.

High performance data processing

Supports line speed forwarding, low latency and high throughput, suitable for backbone aggregation or enterprise edge networks.

Multiple interface support

Supports RJ-45, SFP/SFP+optoelectronic hybrid ports to meet different speed and link medium requirements.

Support rich protocol stack

Including advanced network functions such as VLAN, QinQ, MPLS, IP Routing, QoS, ACL, etc.

3、 Technical parameters (typical configuration, for reference)
Parameter Description
Port types may include 8-24 1G or 10G ports (SFP/RJ45)
Speed support: Supports 10/100/1000 Mbps or 1/10 Gbps (depending on configuration)
Hot swappable support
Module type IOM (Interface Option Module) or Line Card
The power demand is supplied through the device chassis
Equipment compatibility needs to be used in conjunction with the main control board (CPM) and chassis backplane
The management method is unified by the main system and supports SNMP, CLI, and web interfaces
4、 Application scenarios
Backbone network and aggregation layer equipment of telecom operators

Mobile Backhaul Network

Core of Enterprise Metropolitan Area Network

Fiber to the building/FTTx project aggregation node

Data center edge access
