AMAT 0680-01055 Circuit Breaker

Product manual:

AMAT 0680-01055 Circuit Breaker
Product Overview

AMAT (Applied Materials) 0680-01055 Circuit Breaker
It is an electrical protection device used in semiconductor manufacturing equipment, whose main function is to protect the circuit of the equipment from overload, short circuit, and abnormal current.
It can automatically disconnect the circuit when the current exceeds the set threshold, preventing damage to the internal electrical modules of the equipment or causing safety accidents.

Technical parameters (typical direction, specific data should refer to the original factory information)

Rated current: According to the equipment design specifications (industrial standard range)

Rated voltage: Suitable for the internal power supply system of semiconductor equipment

Action characteristics: instantaneous overcurrent protection and delayed overload protection

Mechanical lifespan: Highly reliable mechanical contacts that can withstand multiple operations

Installation method: modular or plug-in, easy to integrate and replace equipment

Environmental adaptability: Suitable for semiconductor equipment environments with high cleanliness and low humidity

Application scenarios

Control box and chassis control box protection

As the main power switch and protective device, it prevents damage to the electrical modules of the equipment due to overload or short circuit

Ensure the safe operation of modules such as valves, heaters, controllers, PCBs, etc

Equipment protection for sedimentation processes (CVD/PVD/ALD)

Cut off the power supply in case of abnormalities in the cavity heater, pump, RF module, or gas control system to avoid process damage

Etching process equipment protection

Protect RF power modules, valves, and sensor circuits to prevent equipment shutdown caused by short circuits or overloads

Ion implantation system protection

Circuit breakers monitor power loads to ensure the safety of ion sources and scanning systems

Factory Safety and Maintenance

As part of interlock protection, ensure the safety of operators and equipment

In maintenance or abnormal situations, the circuit can be quickly disconnected for safe operation

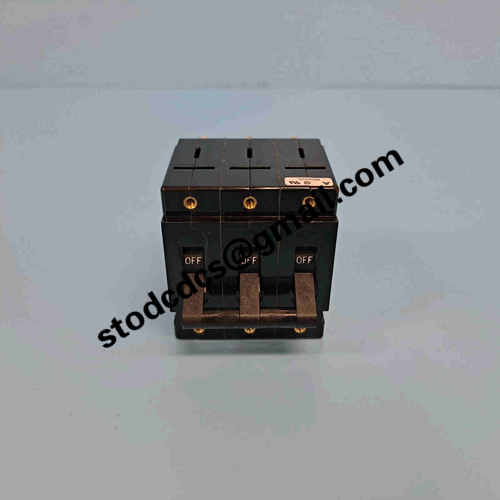

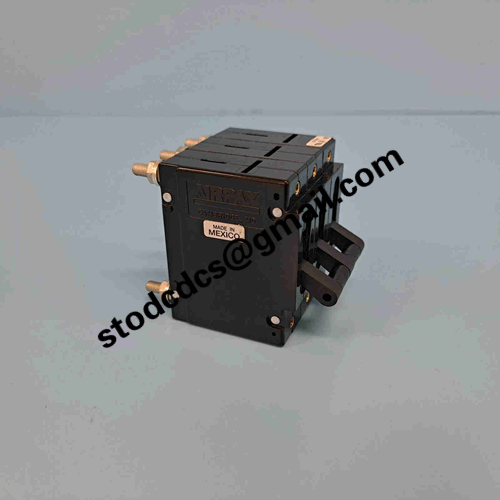

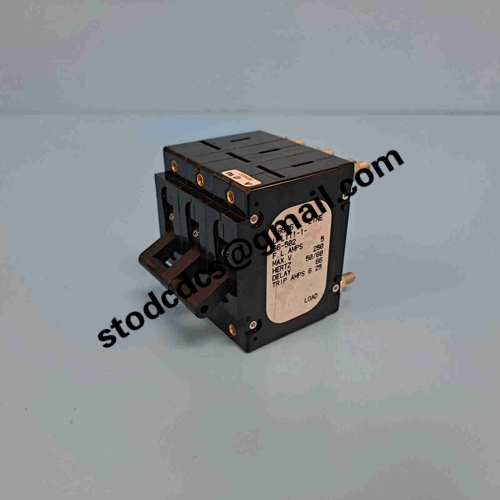

AMAT 0680-01055 Product details picture:

0680-01055
