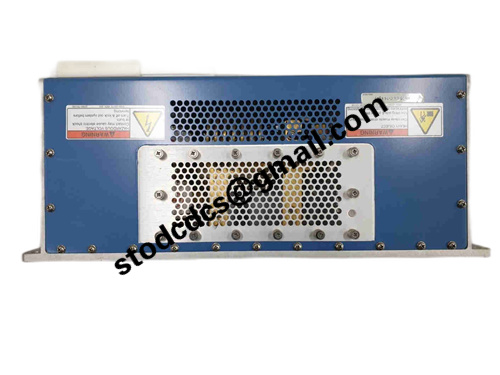

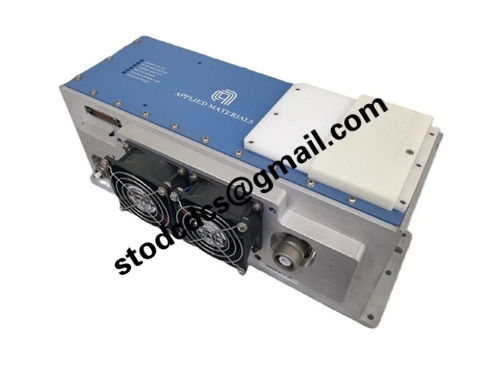

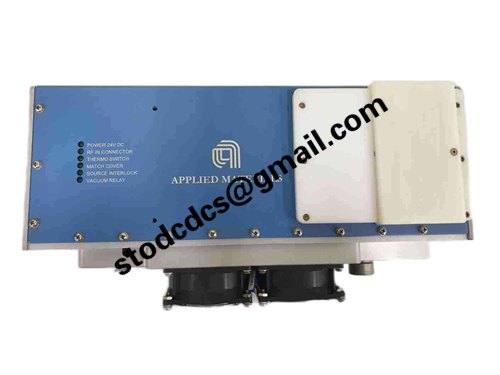

AMAT Applied Materials 0010-26029 Power Matching Components

Brand: AMAT Applied Materials
Model:0010-26029
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

AMAT Applied Materials 0010-26029 Power Matching Components

Product manual:

AMAT Applied Materials 0010-26029 Power Matching Components
1、 Product Overview

AMAT 0010-26029 is an Applied Materials company
RF Power Matching Network Assembly used in semiconductor devices.
The main function of this component is to match the impedance between the radio frequency (RF) power supply and the plasma cavity in real time,
To maximize energy transfer efficiency and stabilize the plasma state.
It is commonly used in vacuum process chambers such as PVD, CVD, ETCH, ALD, etc,
It is an indispensable high-frequency power control module in the AMAT vacuum processing system.

2、 Product Features

Automatic impedance matching function

Real time monitoring of load changes (such as gas types inside the cavity, plasma density, process stage changes) and automatic adjustment of the matching network.

Realize efficient energy transfer from the power supply to the cavity and reduce reflected power.

High reliability and stability design

Using high-voltage capacitors and high-frequency inductors to ensure long-term operation under high-power RF conditions.

Has good thermal stability and is suitable for 24/7 continuous production environment.

Modular structure

Modular design facilitates installation and replacement, and can be quickly maintained or upgraded.

Compatible with AMAT's various series of RF power modules (such as ENI, AE, Comdel).

High precision matching response

Fast matching speed (usually<100 milliseconds), meeting the requirements for quick switching of process steps.

Ensure the uniformity of ion density and energy distribution in the process, and improve the consistency of film deposition or etching.

Built in safety protection circuit

Equipped with overvoltage, overcurrent, and overheating protection functions to prevent damage to the RF power supply or cavity caused by abnormal reflection.

Provide feedback signals for system control and status monitoring.

Compatible with multiple AMAT process platforms

Suitable for Endura, Centura, Producer, P5000 and other series of devices.

Can be matched with RF power systems of different power levels (13.56 MHz, 2 MHz, and other frequency bands).
