AMAT Applied Materials 0020-04129 Top hinge bracket

Product manual:

AMAT Applied Materials 0020-04129 Top hinge bracket
1、 Product Overview

AMAT 0020-04129 Top hinge bracket is a structural component in semiconductor equipment, mainly used for hinge support of equipment chassis or cavity door covers. It ensures that the upper cover plate of the equipment has good mechanical strength and stability during the opening and closing process, while maintaining positioning accuracy and avoiding looseness or misalignment caused by frequent operation.

2、 Technical parameters (common characteristic reference)

Component category: Mechanical fixed bracket

Installation position: at the upper part of the equipment/door cover hinge

Main functions: supporting hinges, carrying opening and closing torque

Common materials: stainless steel or high-strength steel, some may use aluminum alloy

Surface treatment: may undergo electroplating, anodizing, or passivation treatment to improve corrosion resistance

Fixed method: screw or bolt installation, matched with hinge pin shaft

3、 Application scenarios

Semiconductor process equipment

The hinge fixation of the cavity door cover, maintenance door or access port.

Precision mechanical structure

Ensure stable positioning of mechanical components during high-frequency opening and closing operations.

Cleanroom equipment

Ensure the sealing and mechanical strength of the chamber door to avoid particle contamination.

4、 Product advantages

Stable structure: able to withstand mechanical stress caused by repeated opening and closing.

Accurate positioning: Maintain the consistency of the hinge centerline and door cover position to ensure that the door body is tightly closed.

Easy maintenance: modular design, easy to disassemble and replace.

Strong adaptability: As an AMAT original component, it can perfectly match the original hinge system of the equipment.

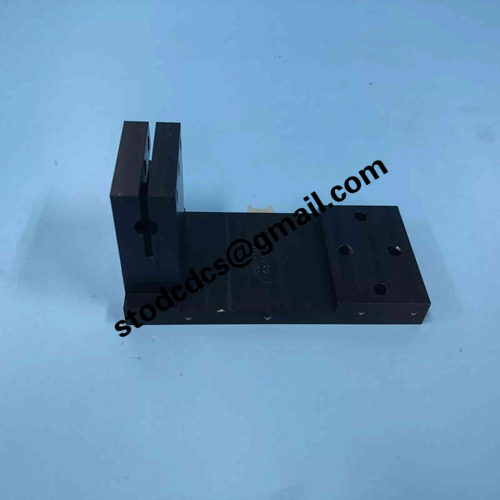

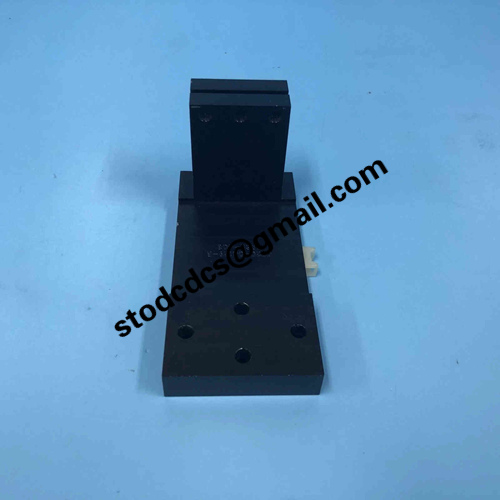

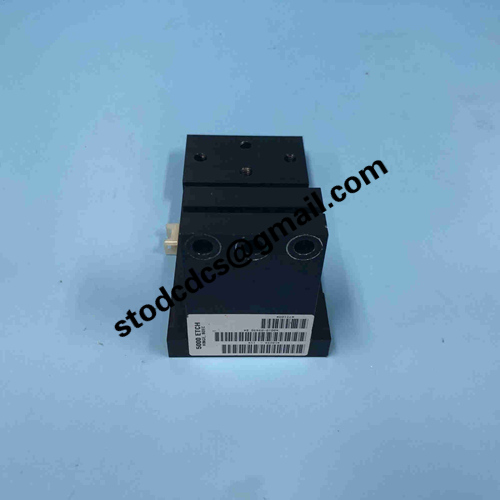

AMAT Applied Materials 0020-04129 Product details picture:

0020-04129

AMAT Applied Materials 0020-04129 product video
