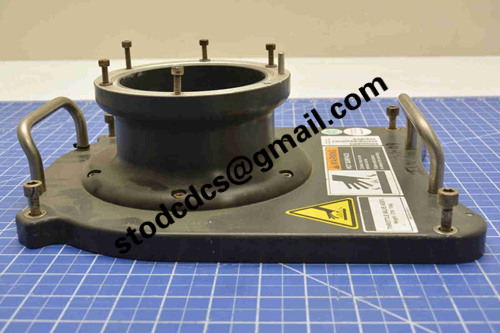

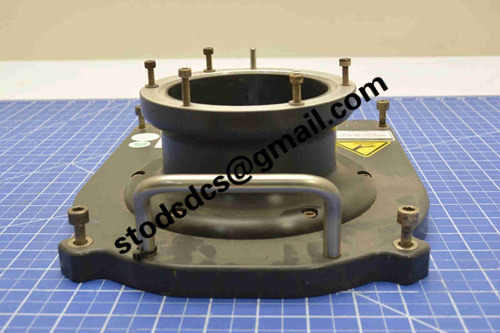

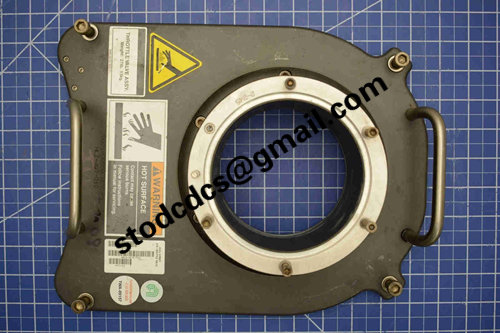

AMAT Applied Materials 0021-09550 chassis

Brand: AMAT Applied Materials
Model:0021-09550
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

AMAT Applied Materials 0021-09550 chassis

Product manual:

AMAT Applied Materials 0021-09550 chassis
1、 Product Overview

AMAT 0021-09550 is a mechanical support and module mounting chassis used by Applied Materials for semiconductor equipment.
This chassis serves as the core load-bearing and structural platform of the equipment machine, undertaking the following main functions:

Supporting components such as internal control board, power module, vacuum pump, gas pipeline, and chamber module of the equipment.

Provide reliable mechanical fixation and modular layout to ensure the stability and safety of internal components of the equipment.

Implement electrical isolation, thermal management, and standardized cable routing between modules.

2、 Product Features

High strength mechanical structure

Made of industrial grade metal materials (steel plates or aluminum alloys) with high load-bearing capacity.

Ensure that the equipment is structurally stable and not easily deformed during long-term operation, handling, vibration, or maintenance.

Modular layout design

Reserved module installation positions, fixing holes, and sliding rails on the chassis for easy installation of control boards, I/O modules, power modules, and vacuum pumps.

Support quick disassembly and module replacement to improve equipment maintenance efficiency.

Electrical and signal isolation

Consider electrical isolation between modules in the design to reduce noise interference and static accumulation risks.

Provide a secure installation area for sensitive control units.

Thermal management and heat dissipation optimization

The chassis structure design supports natural ventilation or fan/cooling duct layout to help dissipate heat from internal electronic components.

Adapt to long-term high-power operation conditions of semiconductor equipment to ensure stable component temperature.

Safety and Protection Design

The edges of the chassis have been treated to prevent scratches or component damage by operators.

Can be used in conjunction with device enclosures, panels, and safety shields to provide overall protection.
