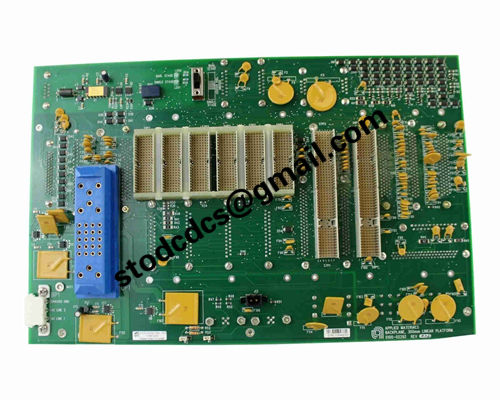

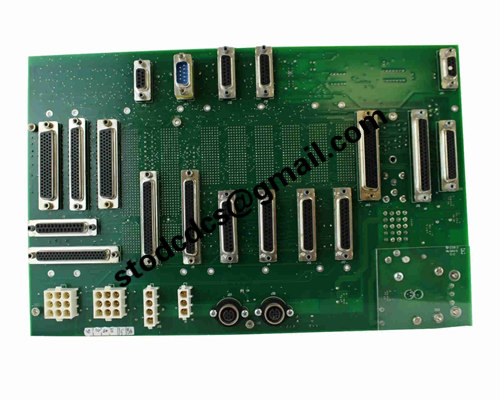

AMAT Applied Materials 0100-02292 Backboard

Brand: AMAT Applied Materials
Model:0100-02292
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

AMAT Applied Materials 0100-02292 Backboard

Product manual:

Product Overview

The AMAT Applied Materials 0100-02292 backplane is a core circuit interconnect component used in semiconductor devices. It usually serves as a communication and power distribution channel between various functional modules of the system, providing signal transmission, power supply, and interface integration. The backplane is used in AMAT's process equipment (such as CVD, PVD, etching machines, etc.) to achieve stable interconnection between the control system and the execution unit.

Technical parameters (typical features, specific model parameters need to be confirmed in conjunction with physical objects/documents)

Product type: Backplane Assembly

Main functions:

High speed signal interconnection between modules

Power distribution and voltage stabilization

Channel isolation and grounding protection

Interface form: Multi slot connector interface, compatible with AMAT dedicated control/signal module

Electrical performance:

High speed bus transmission capability

EMC/EMI suppression design

Optimization of Power Distribution Network (PDN)

Mechanical characteristics: Standardized dimensions, compatible with AMAT racks or control enclosures

Application scenarios

Semiconductor manufacturing equipment control system: connects processor modules, I/O modules, and power modules to achieve unified data and power distribution.

High precision process control: Ensure real-time communication for processes such as etching, deposition, and ion implantation.

System expansion and maintenance: Supports modular plugging and unplugging, facilitating device upgrades and maintenance.
