AMAT Applied Materials 0100-09063 Analog Input Module

Product manual:

1、 Product Overview

The AMAT Applied Materials 0100-09063 Analog Input Module is a critical signal acquisition component used in semiconductor equipment.
It is used to collect analog signals from various sensors, such as voltage, current, temperature, or pressure,
And transmit the signal to the main controller or process analysis module to achieve precise process monitoring and control.

2、 Technical parameters (speculated and organized)

Component type: Analog Input Module

Function positioning: Collect analog signals and transmit them to the control system

Input type: voltage, current, or other standard analog signals

Interface type: onboard interface or connected to the controller through a wiring harness

Installation method: Modular design, can be installed in the control chassis or process module

Protection function: overcurrent, overvoltage, short circuit, and signal filtering protection

Environmental adaptability: Industrial grade design, suitable for semiconductor cleanrooms and high electromagnetic interference environments

Version revision: There may be different versions (Rev A/B, etc.) with differences in the number of channels or interface types

3、 Application scenarios

Process parameter acquisition: Collect analog signals such as pressure, flow rate, temperature, liquid level, etc

Closed loop control support: provides real-time data for the controller to achieve closed-loop process adjustment

Equipment monitoring: Provide simulated data to the main control system for monitoring, alarming, and fault diagnosis

Process data recording: supports equipment automation data collection and analysis

4、 Product advantages

High precision acquisition: ensuring the accuracy of process control data

Modular design: easy to install, maintain, and quickly replace

Industrial grade reliability: suitable for clean room environment and high load operation

Complete protection functions: overcurrent, overvoltage, and short-circuit protection to enhance system safety

Strong compatibility: highly compatible with various AMAT controllers, I/O modules, and analysis modules

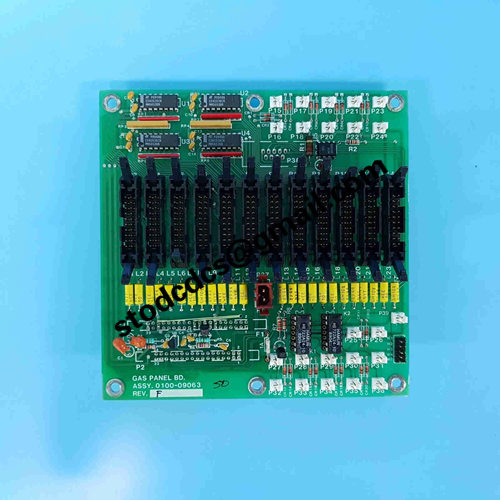

AMAT Applied Materials 0100-09063 Product details picture:

0100-09063

AMAT Applied Materials 0100-09063 product video
