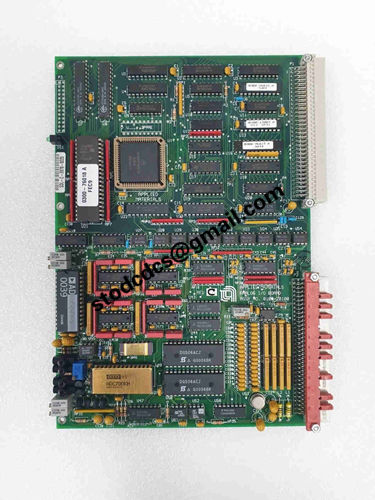

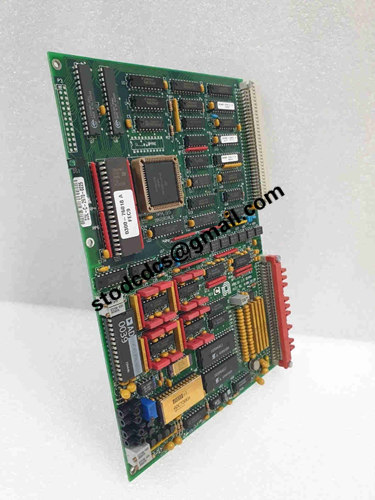

AMAT Applied Materials 0100-20100 Analog I/O Board

Brand: AMAT Applied Materials
Model:0100-20100
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

AMAT Applied Materials 0100-20100 Analog I/O Board

Product manual:

Product Overview

The AMAT Applied Materials 0100-20100 Analog I/O board is a signal acquisition and control module used in semiconductor devices, primarily for processing analog input and output signals. This module is responsible for converting sensor signals into digital signals that can be read by the controller in the process control system, and converting control instructions output by the controller into analog signals to drive actuators or other peripheral devices, thereby achieving precise process adjustment and monitoring.

Technical parameters (typical features, specific parameters need to refer to physical objects or official materials)

Product type: Analog I/O Board

Main functions:

Collect sensor analog signals (such as temperature, pressure, current, voltage)

Output analog control signal to drive actuator

Provide signal isolation and anti-interference processing

Number of channels: Multiple analog input and output channels (specific number depends on model and configuration)

Interface type: Modular connector, compatible with AMAT system backplane or control rack

Electrical characteristics:

Input voltage range: usually 0-10V or ± 10V

Input current range: 0-20 mA or 4-20 mA

Output driving capability: capable of driving standard analog loads

High precision A/D and D/A conversion

Mechanical characteristics: Industrial grade PCB design, suitable for semiconductor equipment environment

Application scenarios

Semiconductor process control: used in etching, deposition, ion implantation and other equipment to collect process parameters and output control signals.

Sensor data acquisition: Process analog signals such as temperature, pressure, current, voltage, etc. and transmit them to the control system.

Executive control: Convert controller instructions into analog outputs to drive valves, heaters, or power amplifiers.

System integration: Collaborate with backboards, matrix boards, relay modules, and servers to achieve complete control system functionality.
