AMAT Applied Materials 0100-A0007 Detection Board

Product manual:

Product Overview

The AMAT 0100-A0007 detection board is a key module used in semiconductor equipment for signal acquisition, sensing data detection, and preliminary processing. It is commonly used in process chambers, optical or gas detection systems to convert physical quantities (such as pressure, flow rate, optical signals, etc.) into electrical signals that can be processed by controllers, ensuring equipment automation and process stability.

Product Features

High sensitivity detection capability

Can accurately collect small signal changes to ensure accurate collection of process parameters.

Suitable for high-speed or high-precision measurement scenarios.

Multi channel signal processing

Support multiple input channels to collect data simultaneously, improving system data collection efficiency.

The internal circuit can perform preliminary signal amplification and filtering to improve signal quality.

Compatible with multiple signal types

Can process analog or digital signals, making it easy to interface with controllers and I/O modules.

Support different sensor interface types to enhance module compatibility.

Reliability and Industrial Design

Industrial grade PCBs and components, suitable for semiconductor equipment cleanrooms, vacuum and high temperature environments.

High lifespan components ensure long-term stable operation.

Security protection function

Built in overvoltage, overcurrent, and electrostatic protection to prevent module or sensor damage from abnormal states.

Support the output of abnormal state alarm signals to ensure the safe operation of equipment.

Modularization and easy maintenance

Standardized dimensions and interfaces for easy installation, disassembly, and replacement.

Can be seamlessly integrated with AMAT control system and other modules.

Typical application scenarios

Semiconductor process equipment sensor data acquisition

Chamber pressure, flow rate, temperature or optical signal detection

Signal detection and preliminary processing in automation control systems

Process parameter monitoring and closed-loop control system

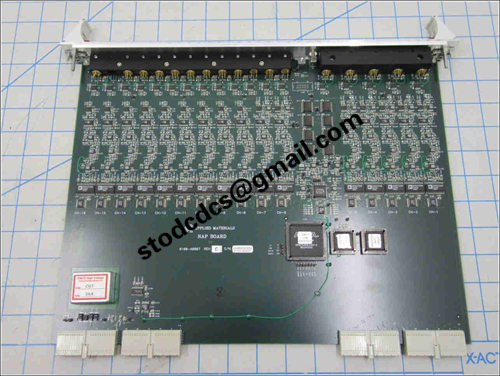

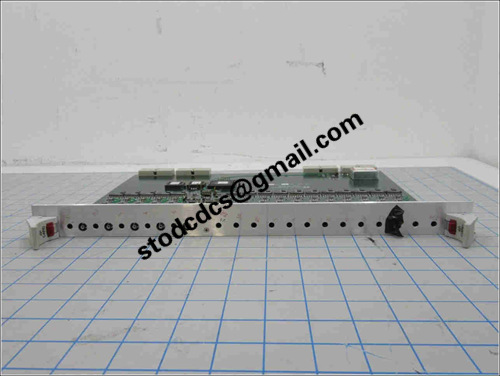

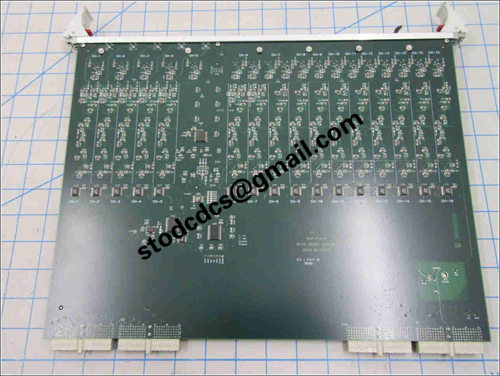

AMAT Applied Materials 0100-A0007 Product details picture:

0100-A0007
