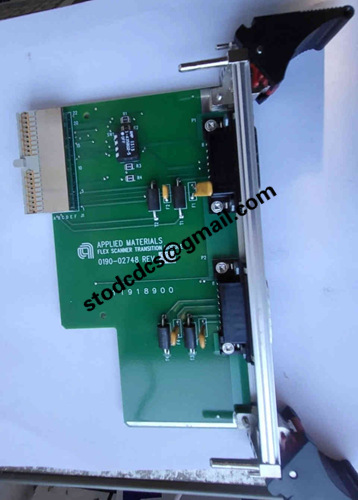

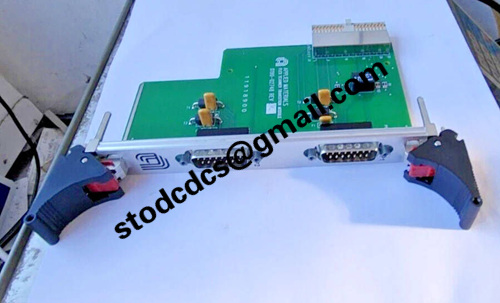

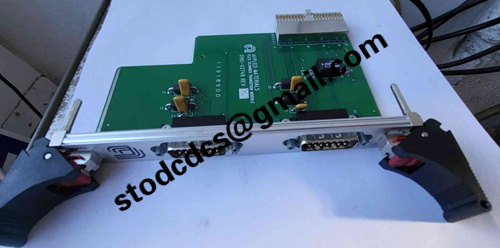

AMAT Applied Materials 0190-02748 Hardness Scanner Conversion Module

Brand: AMAT Applied Materials
Model:0190-02748
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

AMAT Applied Materials 0190-02748 Hardness Scanner Conversion Module

Product manual:

AMAT 0190-02748 Hardness Scanner Conversion Module
Product Overview

The AMAT 0190-02748 Hardness Scanner Conversion Module is an electrical interface module used in Applied Materials semiconductor equipment to process and convert signals from hardness scanners. It is responsible for converting the physical parameters collected by the hardness scanner, such as surface hardness, indentation, or material response, into standard electrical signals that can be processed by the controller or I/O module, achieving seamless integration with the equipment control system. This module is a key component that ensures reliable transmission of scanner data and process control.

Technical parameters (inferred general characteristics)

Type: Signal Conversion/Interface Module

Function: Convert the hardness scanner signal into a digital or analog signal that can be recognized by the controller

Interface type: standardized plug or terminal interface

Signal support: analog output, digital output, or switch signal

Electrical characteristics: Low voltage DC power supply (+24VDC common), with overcurrent protection and isolation protection

Structural features: Compact modular design, suitable for installation inside equipment

Environmental adaptability: cleanroom compatibility, corrosion resistance, low particle emissions

Application scenarios

Semiconductor process hardness testing

Transfer the surface hardness data measured by the hardness scanner to the control system

Data collection and process feedback
