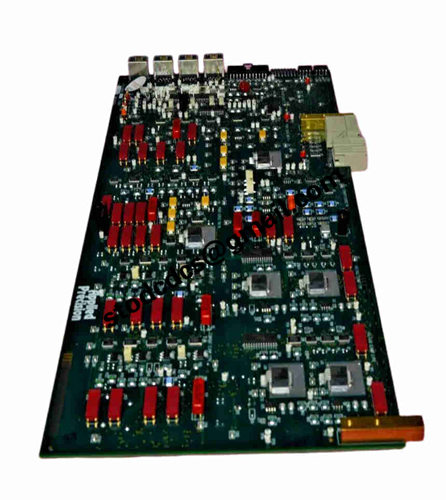

AMAT Applied Materials 20-000314-003 Analog Input Module

Brand: AMAT Applied Materials
Model:20-000314-003
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

AMAT Applied Materials 20-000314-003 Analog Input Module

Product manual:

AMAT Applied Materials 20-000314-003 Analog Input Module Product Features

1、 Product Overview
The AMAT 20-000314-003 Analog Input Module is an important signal acquisition component in Applied Materials semiconductor equipment control systems,
Mainly used to convert analog signals from on-site sensors or process probes (such as voltage, current, temperature, pressure, flow rate, etc.)
Convert into digital signals for analysis and adjustment by the main control system.
This module is widely used in AMAT's cavity control system, gas panel, temperature control system, and vacuum detection unit,
It is one of the important basic modules for achieving high-precision process control.

2、 Main product features

Fast sampling and real-time response
Built in high-speed analog-to-digital conversion circuit (A/D Converter), capable of parallel sampling of multi-channel signals, achieving millisecond response speed and meeting real-time control requirements of equipment.

Compatible with multiple signal types
Support multiple sensor signal types (0-10V, ± 5V, 4-20mA, 0-20mA, etc.) to adapt to different detection and feedback systems.

Signal isolation and anti-interference design
Adopting optoelectronic isolation and filtering circuits, it has good anti electromagnetic interference performance and avoids external noise affecting signal accuracy.

Industrial grade stability
Adopting high reliability components and multi-layer circuit board design, it has strong seismic resistance, high temperature and humidity resistance, ensuring long-term stable operation in the harsh environment of semiconductor equipment.

Modular interface and ease of maintenance
Standardized plug-in module design, clear interface definition, quick installation or replacement, reducing equipment maintenance time.

Self diagnosis and status indication function
Equipped with input channel status detection function, it can monitor signal abnormalities, disconnections or overloads in real time, improving system security.

High compatibility
Specially designed for AMAT's equipment control platform, it can perfectly cooperate with its main control board, communication module, and data acquisition system to ensure overall system data synchronization and consistency.
