AMAT Applied Materials 9101-1745 Servo Drive

Product manual:

Product Overview

AMAT 9101-1745 Servo Drive is provided by ElectroCraft and is a high-performance motor control module widely used in semiconductor manufacturing equipment, particularly suitable for Centura systems and other precision motion control systems.

Technical Features

Model: 9101-1745

Manufacturer: ElectroCraft

Part number: DDM-005X-DN-AM

Series: BRU Series

Version: Rev. C, Ver. 1.33

High precision motion control: supports high-resolution encoders to achieve precise speed and position control.

Multiple control modes: Supports analog voltage, pulse direction, RS-232/485 communication, and other control modes.

High power output: Provides a continuous output current of up to 12A to meet the needs of high-power motors.

Compact design: suitable for installation of equipment with limited space.

High reliability: Using high-quality components and manufacturing processes to ensure long-term stable operation.

Application field

Semiconductor Manufacturing Equipment

Used for precise motion control in processes such as wafer processing, etching, and deposition.

Automatic production line

Provide precise motion control for automated assembly and handling processes.

robot system

Provide high-precision drive control for industrial robots.

Precautions

Compatibility: When replacing or installing, ensure that it matches the device model and version.

Status confirmation: Check the appearance and function of the drive before purchase, and conduct professional testing if necessary.

Maintenance and Cleaning: Regularly inspect and clean the drive to prevent dust or impurities from affecting performance.

Installation direction: Pay attention to the installation direction and fixing method of the driver to ensure normal operation.

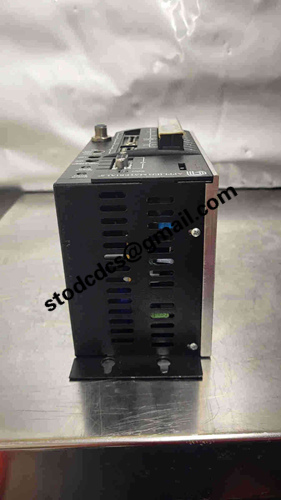

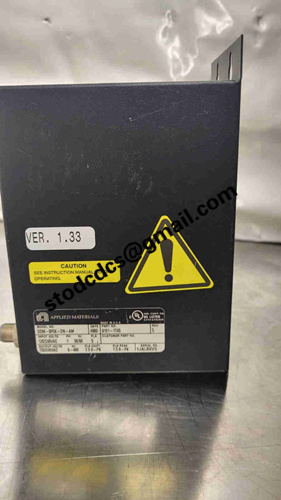

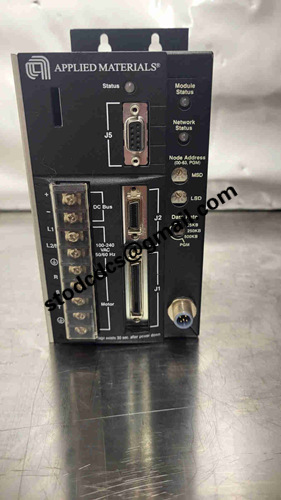

AMAT Applied Materials 9101-1745 Product details picture:

9101-1745

AMAT Applied Materials 9101-1745 product video
