Atlas Copco PF3009-C-HW Power Focus Sensor

Product manual:

2、 Technical parameters (brief)
Input power supply: 100-240V AC, 50/60Hz

Control methods: torque control, angle control, multi-stage control, tightening window management

Supporting tools: Tensor ST, ETX, ES series, etc

Communication interface: Ethernet I/O、RS232， Support extensions (such as ProfiBus, DeviceNet)

Program management: Supports switching between multiple tightening programs to adapt to mixed flow production

Installation method: Integrated installation of control cabinet or workstation

3、 Application Fields
1. Automotive assembly workshop
Tightening of bolts for key components such as engine, gearbox, and steering system

Chassis and body module connection, especially suitable for processes with high safety levels and strict fault tolerance requirements

Bind the tightening result with the VIN code to achieve assembly traceability

2. New energy vehicles and battery manufacturing
Precise tightening of battery module casing, liquid cooling plate, and electrical connection parts

Tightening connectors in the electric drive system controller and power conversion module

Focus control technology enhances the consistency and reliability of battery safety bolts

3. Heavy Machinery and Rail Transit
High strength screw connection control in train carriages, brake modules, and chassis components

Key connection parts that require process curve recording, such as bridge supports, hydraulic systems, etc

4. High end electronic manufacturing
Assembly of shell and internal structural components of servers, electrical control boxes, frequency converters, etc

Specially suitable for micro torque tightening process of plastic and metal hybrid structures

5. Automated production line system
Collaborate with robots and PLCs to complete automatic tightening tasks

Support intelligent recognition of the current workstation or product model, and switch to the corresponding program

Improving stability in automated production processes through 'focus control'

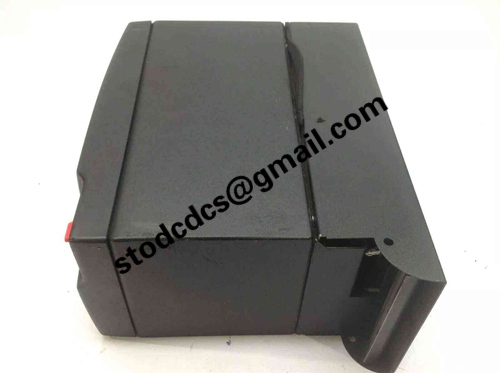

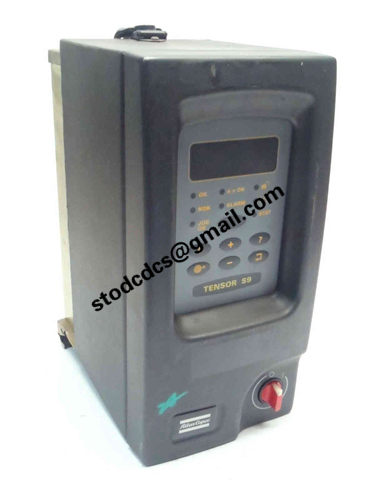

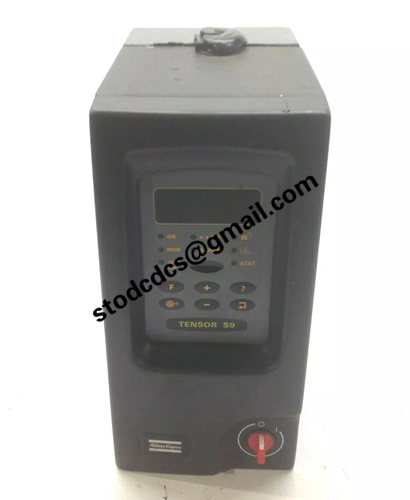

Product details picture:

PF3009-C-HW
