Atlas Copco PF3009-G-DN-HW Driver

Product manual:

product name
Atlas Copco PF3009-G-DN-HW Driver

Product Introduction
PF3009-G-DN-HW is an intelligent tightening controller (driver) for the Atlas Copco Power Focus 3000 series,
Specially designed for medium to high torque assembly applications, supporting use with Tensor series electric tools.

G represents the graphical interface version (with display screen for easy operation and local debugging)

DN indicates support for DeviceNet industrial communication protocol

HW stands for standard hardware configuration, suitable for various industrial automation application environments

This driver can achieve high-precision, multi-stage tightening control, and has functions such as communication integration, data acquisition, and quality traceability.

Main application areas

Automobile manufacturing assembly line
Used for high-precision connection of bolts in chassis, power system, vehicle structure and other parts, ensuring consistency and quality control.

Assembly of new energy vehicles and battery systems
Suitable for key bolt tightening tasks of battery cases, electronic control units, electric drives, and other components, supporting MES data access.

Automated tightening workstation
Collaborate with robots or automation equipment to achieve fast switching and precise control of multiple channels and processes.

Construction Machinery and Heavy Equipment Manufacturing
Applied to the assembly of large-sized structural components with high connection strength requirements, ensuring reliable tightening.

Rail Transit and Aviation Assembly Industry
Meet the high requirements for torque control accuracy and traceability in component connection scenarios.

Product Features

Graphic user interface for easy setup, program switching, and fault diagnosis

Support multi-stage torque/angle/time control methods

Built in DeviceNet communication interface, suitable for standard industrial fieldbus networks

Supports wide compatibility with Atlas Copco Tensor series tools

Can collect and upload tightening data, support process analysis and quality traceability

Suitable for fixed workstations or embedded control cabinet integration

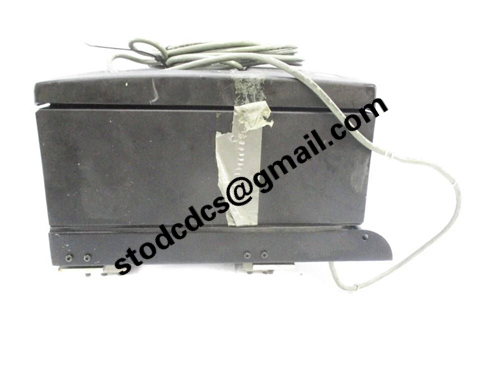

Product details picture:

PF3009-G-DN-HW
