Atlas Copco PF3102-C-HW Torque Tool Controller

Product manual:

1、 Product Overview
Atlas Copco PF3102-C-HW is a member of the Power Focus 3100 series controllers,
Used to control Atlas Copco Tensor series electric tightening tools and perform high-precision torque and angle control tasks.
This model is characterized by a compact structure, suitable for embedded installation, especially for automated production lines that require space saving or distributed control.

Model Description:

PF3102: Indicates that the controller is a 2-channel standard model of the PF3100 series

C: Standard configuration with core control and communication functions

HW: Refers to the hardware version (Hardware)

2、 Technical parameters
Adaptation tool: Supports tightening tools such as Tensor ST, SL, STR, EBL, ETX, and other series

Control functions: torque control, angle control, multi-stage control, adaptive control

Power input: AC 100-240V, 50/60Hz

Communication interfaces: Ethernet, RS232, digital I/O (optional Profinet, DeviceNet, EtherNet/IP, etc.)

Program capacity: Supports up to 255 tightening programs

Process data: supports data recording for each tightening, curve storage, and real-time transmission

User Interface: Supports external display, touch screen, operation panel, or configuration using ToolsTalk PF tool through PC

3、 Typical application areas
automobile making

Key connection parts such as body assembly, engine module, chassis system, etc

Multi station embedded controller layout for distributed tightening management

New energy electric vehicles

Battery pack assembly, electronic control housing, and drive system connection

Support MES functions such as process switching, VIN code recognition, and data binding integration

Automated tightening system

Integrate with robots as arm end controllers

Multi controller collaborative construction of complex tightening process flow

Construction Machinery and Heavy Industry

Stability Control and Error Detection in the Tightening Process of High Strength Bolts

Multi program segment control applications, such as flanges, hinges, bearing seats, and other structural components

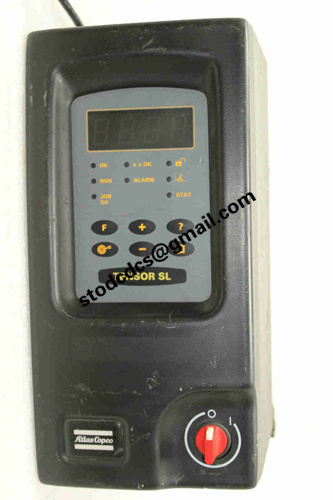

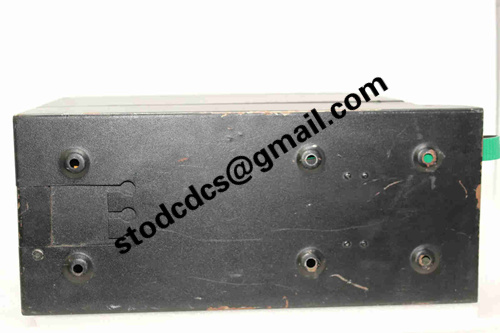

Product details picture:

PF3102-C-HW
