ATLAS COPCO PF3107-C-IB2-HW Driver

Product manual:

1、 Product Overview
PF3107-C-IB2-HW is one of the Atlas Copco Power Focus 3100 series controllers,
Used to drive and manage Tensor 3 to 7 series electric tightening tools, supporting high precision
Traceable tightening operations are widely used in automated industrial assembly production lines.

2、 Technical parameters (brief)
Product model: PF3107-C-IB2-HW

Adaptation tool: Tensor 3 to Tensor 7 electric torque tool

Output power: approximately 300 watts

Input voltage: 90-120V/180-240V AC, 50/60Hz

Weight: Approximately 10-11 kilograms

Structure type: Modular design, can be used in conjunction with IB2 interface modules

Interface features:

Support IB2 industrial bus (commonly used for factory automation system integration)

Can connect to the upper computer system, PLC, and I/O units to achieve automatic process control

Control ability:

Support multiple tightening strategies (torque control, angle control, multi-channel, multi-step sequence)

Can store up to hundreds of programs and adapt to complex processes

3、 Main application areas
1. Automotive manufacturing assembly
Tighten key parts such as engine, chassis, steering system, etc

Meet the requirements of high precision and process consistency

Suitable for collaborative work between flexible workstations and robots

2. Construction Machinery and Heavy Industry
Structural bolt connections for large components such as cranes and hydraulic systems

Stability control in high torque scenarios

Support multi tool synchronization control and data recording

3. Industrial equipment manufacturing
Tightening of equipment such as motors, pump bodies, compressors, etc

Multi program controllers that require rapid switching in high cycle production lines

4. Assembly of household appliances and electronic devices
Used for screw locking attachments in compressors, electronic control units, and other parts

Data traceability, supporting quality statistics and analysis

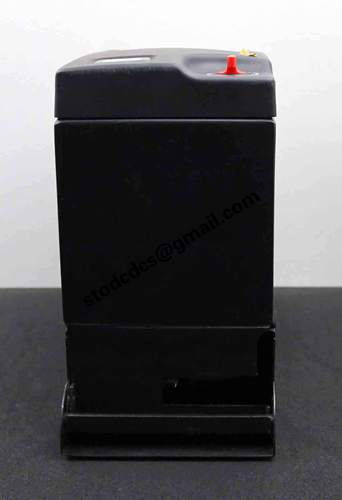

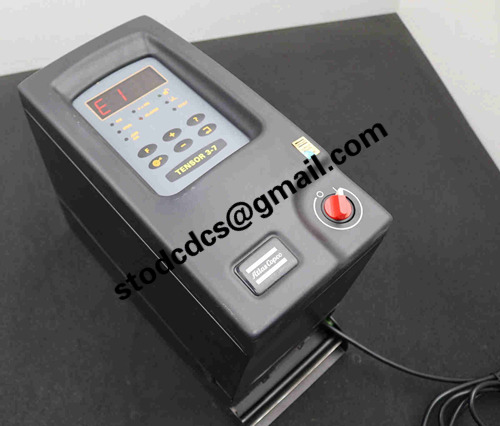

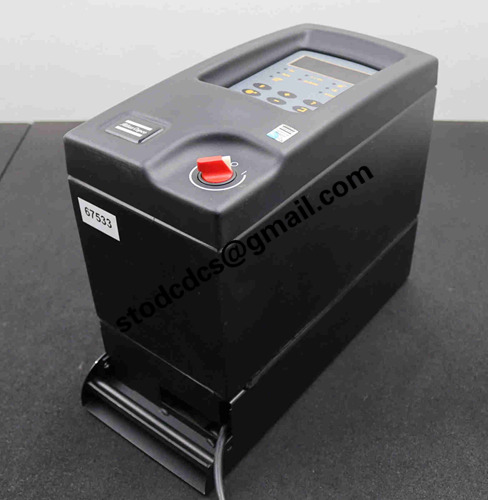

Product details picture:

PF3107-C-IB2-HW
