ATLAS COPCO PF3107-C-PB-HW Compact Controller

Brand:Atlas Copco
Model: PF3107-C-PB-HW
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

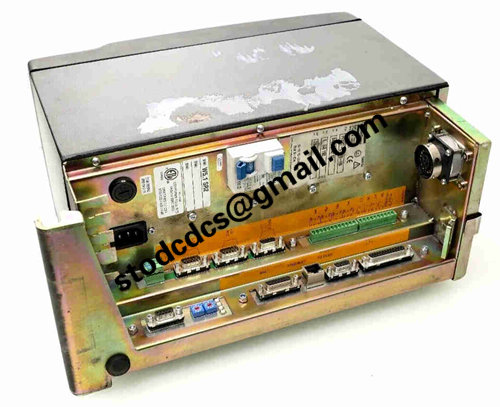

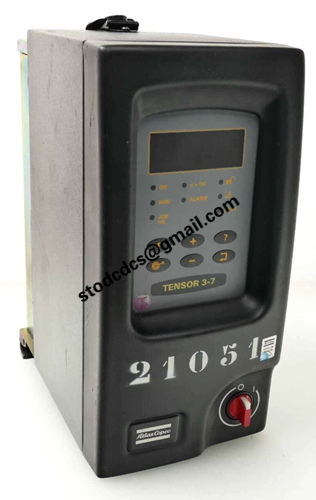

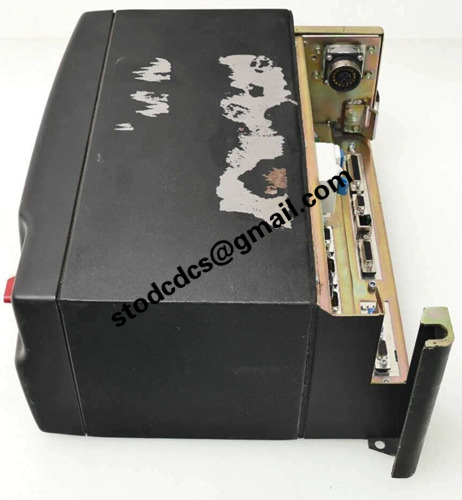

ATLAS COPCO PF3107-C-PB-HW Compact Controller

Product manual:

1、 Product Overview
ATLAS COPCO PF3107-C-PB-HW is a compact tightening controller in the Power Focus 3100 series,
Suitable for driving Tensor 3 to Tensor 7 series DC power tools.
This model is equipped with a PROFIBUS (PB) industrial bus interface,
Especially suitable for embedded, modular, or space constrained industrial assembly workstations.

It combines highly reliable process control capabilities, industrial bus communication support, and concise structural design,
Commonly used in mid to high end automated assembly applications.

2、 Brief Technical Parameters
Model name: PF3107-C-PB-HW

Communication interface: PROFIBUS (PB)

Input voltage: 90-240V AC, 50/60Hz

Maximum output power: approximately 300W

Supporting tools: Tensor ST, Tensor DS, Tensor SL, and other 3-7 series

Control functions: torque control, angle control, combination control, multi-step process support

Installation method: Compact design, suitable for independent workstations or control cabinet installation

3、 Typical application areas
1. Automobile manufacturing
Drive assembly: key fasteners for engine, gearbox, suspension system and other parts

Body assembly: Seat frame, door hinges, front headlights and other connectors that require moderate torque

Automated production line: with robots PLC、 The workstation control system communicates through PROFIBUS

2. Industrial equipment manufacturing
Assembly of module components such as motors, pump bodies, compressors, etc

Automatic testing and tightening station control

Suitable for electrical and mechanical assembly processes with moderate complexity

3. Construction machinery and commercial vehicles
Components that require consistent tightening and process traceability during assembly, such as hydraulic joints and structural frames

High precision requirements for torque control, suitable for use with high-precision sensing tools

4. Home appliances and electronic products
Shell, compressor, wiring harness fixing and other processes

Suitable for multi product parallel production and flexible manufacturing unit (FMS) environments
