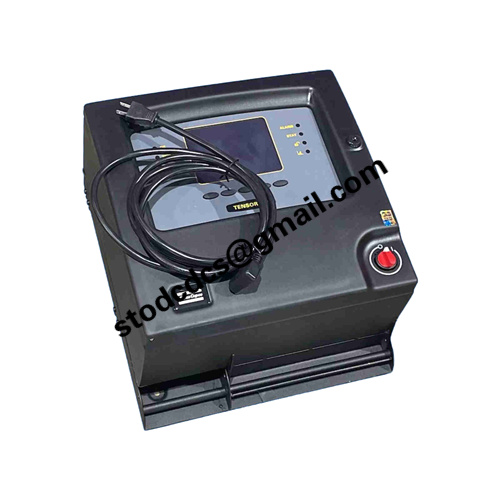

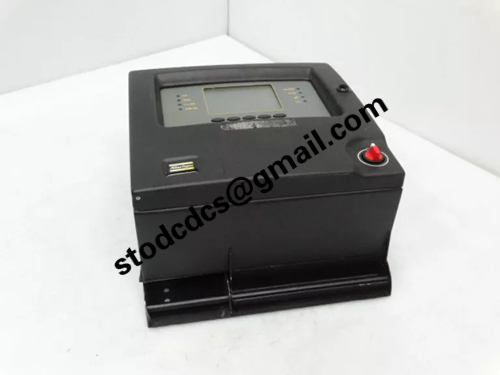

Atlas Copco PF3109-G-HW processor

Brand:Atlas Copco
Model:PF3109-G-HW
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Atlas Copco PF3109-G-HW processor

Product manual:

1、 Product Overview
Atlas Copco PF3109-G-HW is a high-performance processor module in the PF3000 series,
Mainly used to drive and manage Atlas Copco's electric tightening tools (such as Tensor ST, ETX, STR series).

2、 Technical parameters (brief)
Compatible tools: Tensor ST, ETX, STR, EBL and other series of power tools

Tightening method: torque control/angle control/multi-stage/composite control

Communication protocols: Ethernet, RS232, I/O; Optional extension supports ProfiBus/DeviceNet/PROFINET

Program capacity: Supports management of hundreds of tightening programs

Focus recognition function: supports tightening point recognition (Focus Control)

Installation method: Standard industrial control cabinet or embedded production line installation

Other features:

Support fault identification (slipping teeth, missing twist, over twist)

Support tightening curve storage and export

Can be integrated with ToolsTalk PF software and MES/PLC systems

3、 Application Fields
1. Automobile manufacturing
Tightening control of key connectors used in assembly lines such as engines, suspensions, and transmission systems

Suitable for flexible production environments that require multi-channel and multi station operations

Integrate with MES system to achieve one-to-one correspondence between vehicle body number and tightening data

2. New energy vehicle industry
Tightening of battery module structure, precise connection of electric drive system casing and electronic control device

Multi station parallel operation, focus recognition, and program switching functions in high-speed assembly lines

3. Rail transit and heavy industrial equipment
High torque control of heavy-duty threaded connections such as vehicle structure, shock absorbers, and braking systems

Support high load continuous operation of medium and large tools, suitable for harsh industrial environments
