Atlas Copco PF4000-G-PN-HW Power Focus Controller

Brand:Atlas Copco
Model:PF4000-G-PN-HW
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Atlas Copco PF4000-G-PN-HW Power Focus Controller

Product manual:

Atlas Copco PF4000-G-PN-HW is a high-end model power tool controller in the PF4000 series,
Equipped with PROFINET (PN) communication interface, used to drive and manage Atlas Copco Tensor series intelligent tightening tools (such as ST, STR, ETX series).
This controller integrates power management, focus control, communication, data traceability, and security logic functions,
Suitable for intelligent manufacturing scenarios that require high precision, stability, and automation integration.

Name Description:

'G' represents the advanced version, which supports more extended features and advanced programming

PN "indicates support for PROFINET Industrial Ethernet protocol

HW "represents hardware version configuration

2、 Technical parameters (brief)
Supported tool types: Tensor ST, STR, ETX, EBL, RT and other series

Tightening control methods: torque control, angle control, multi-stage control, composite strategy

Interface communication: PROFINET, Ethernet RS232、I/O、USB、 Optional extension module

Installation method: standard cabinet installation or independent workstation integration

Supporting functions:

Up to 7 connection tool ports (depending on configuration)

Can run hundreds of tightening programs

Tighten data for complete traceability and real-time monitoring

Seamless integration with MES/PLC

Focus control function: Identify and control the process accuracy of specific tightening positions, suitable for flexible production lines

3、 Application Fields
1. Automotive industry
High precision tightening points for vehicle assembly lines (such as engine, chassis, suspension, braking system)

Precise connection of complex components such as electric vehicle battery modules, drive systems, and electronic control units

Support data integration with the vehicle MES system to achieve VIN binding and process traceability

2. New energy industry
Fixed battery pack structure, copper bar bolts, and installation of electrical control devices

High reliability threaded connections for large precision equipment such as wind power equipment and high-voltage direct current power systems

3. Rail Transit
High strength connector control for high-speed train body assembly, frame, and braking system

Key tightening process for long-term operation and high vibration scenarios

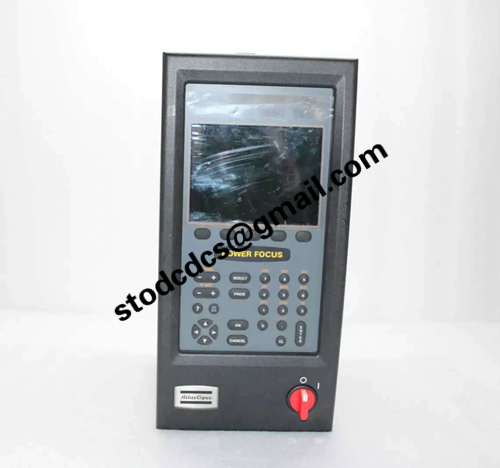

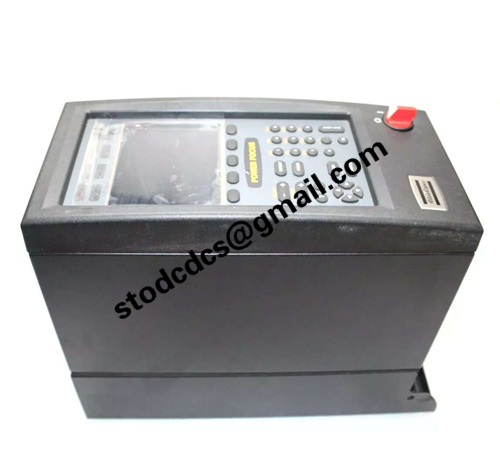

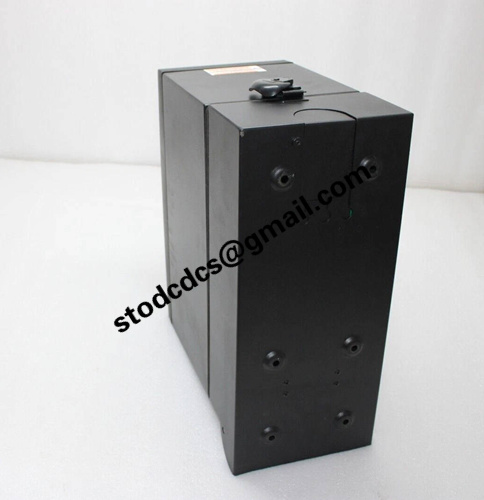

Product details picture:

PF4000-G-PN-HW
