ATLAS COPCO TC52P-N-DECTLM Controller Driver Unit

Product manual:

Brief introduction
TC52P-N-DECTLM is a high-performance controller driver unit in the Atlas Copco TC5000 series,
Mainly used for controlling and driving multi axis servo fastening tools.

The model interpretation is as follows:

TC52P: belongs to the TC5000 series and supports PROFIBUS communication

N: May represent a single channel or no additional modules (depending on the application version)

2、 Function and Features
Controller type: Electric fastening tool servo control and drive unit

Supported tool types: Atlas Copco multi axis tightening system, servo screwdriver, embedded motor tool

Communication interface: PROFIBUS (compatible with mainstream PLCs such as Siemens)

Main functions:

Real time torque and angle control

Support dynamic fastening process and multi-step technology

Tightening curve analysis, data recording, and traceability

Support tool identity recognition and program switching

System structure:

Integrated power control, logic processing, servo signal output

Configurable multi-channel module for easy system expansion

Protection functions: overheating protection, short circuit protection, communication fault alarm, redundant power interface

Installation method: Standard 19 inch cabinet installation or embedded control cabinet

3、 Application Fields
1. Automotive assembly line
Multi axis synchronous tightening tasks, such as engine, axle, seat, chassis and other workstations

Cooperate with the Power MACS control system to form a complete digital fastening unit

Provide full process tightening data traceability and support zero defect quality control system

2. Manufacturing of mechanical equipment
High torque bolt connections, such as hydraulic equipment, compressors, and industrial pump assemblies

Multi station synchronous tightening of complex structural components

3. Rail Transit and Aerospace
Applications with extremely high requirements for fastening quality, process consistency, and data traceability

Can be used in conjunction with MES system to achieve closed-loop process control

4. Home appliances and electronics manufacturing
Support flexible assembly and quick switching of process programs

Improve product consistency and reduce human error

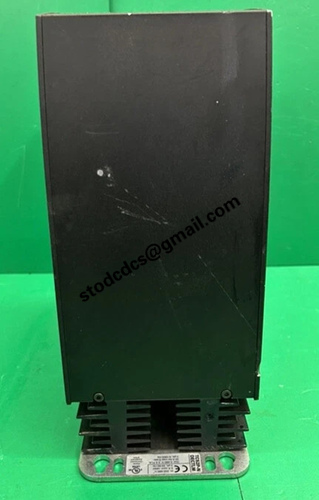

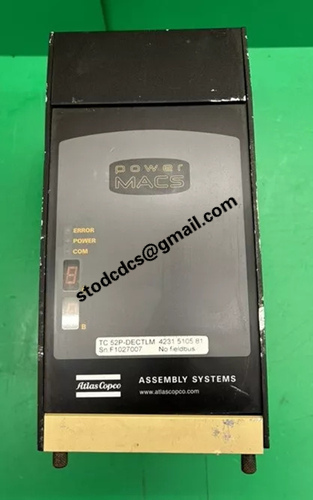

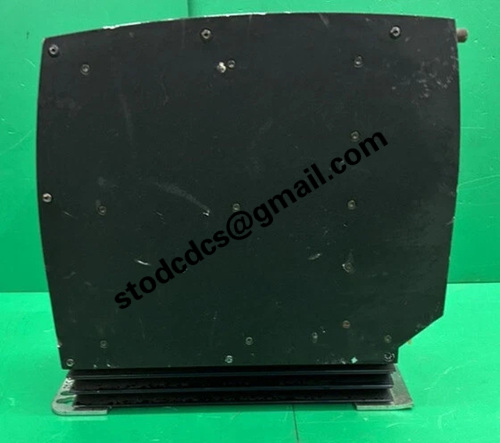

Product details picture:

TC52P-N-DECTLM
