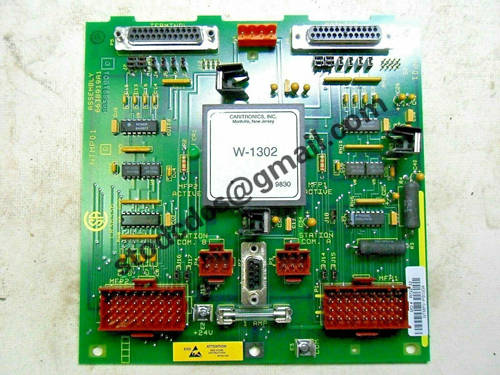

Bailey NTMP01 Terminal Unit

Brand:Bailey
Model:NTMP01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Bailey NTMP01 Terminal Unit

Product manual:

Bailey NTMP01 is a Terminal Processing Module produced by ABB Bailey, commonly used in Bailey INFI 90 or Harmony control systems as a key component of process control systems for centralized signal acquisition, conversion, and transmission.

1、 Basic Information
Project Description
Product model NTMP01
Manufacturer ABB (formerly Bailey Controls)
Product Name: Terminal Processing Module
System Platform INFI 90/Harmony Control System
Installation method: Plug and unplug installation in the mounting cage

2、 Product functional features
Process signal processing function

Connect on-site I/O signals (such as switch values and analog signals);

Realize data collection, preliminary conversion, transmission and processing;

Support data interfaces for various industrial sensors or actuators.

System interface function

Transfer on-site data to control modules (such as IMMFP12, IMCP01, etc.);

Support data communication with INFI-NET network or system bus;

Can work in conjunction with controllers such as INICT01.

Diagnostic and self-monitoring functions

Has module health status indication;

Support hot plugging for easy system maintenance and fault replacement.

High reliability design

Industrial temperature range and electrical isolation;

Strong anti-interference ability and adaptability to complex industrial control field environments.

3、 Brief Technical Parameters
Project parameters
The power supply voltage is uniformly supplied through the backend module framework (usually+5V or+24V DC)
Interface type Backplane slot connection
Communication methods support expansion such as INFI-NET, MODBUS, serial ports, etc
The working temperature range is usually 0-60 ° C (industry standard)
Module size standard Bailey module size, compatible with Bailey module framework
Applicable systems ABB INFI 90, Harmony, Bailey Net 90 series
